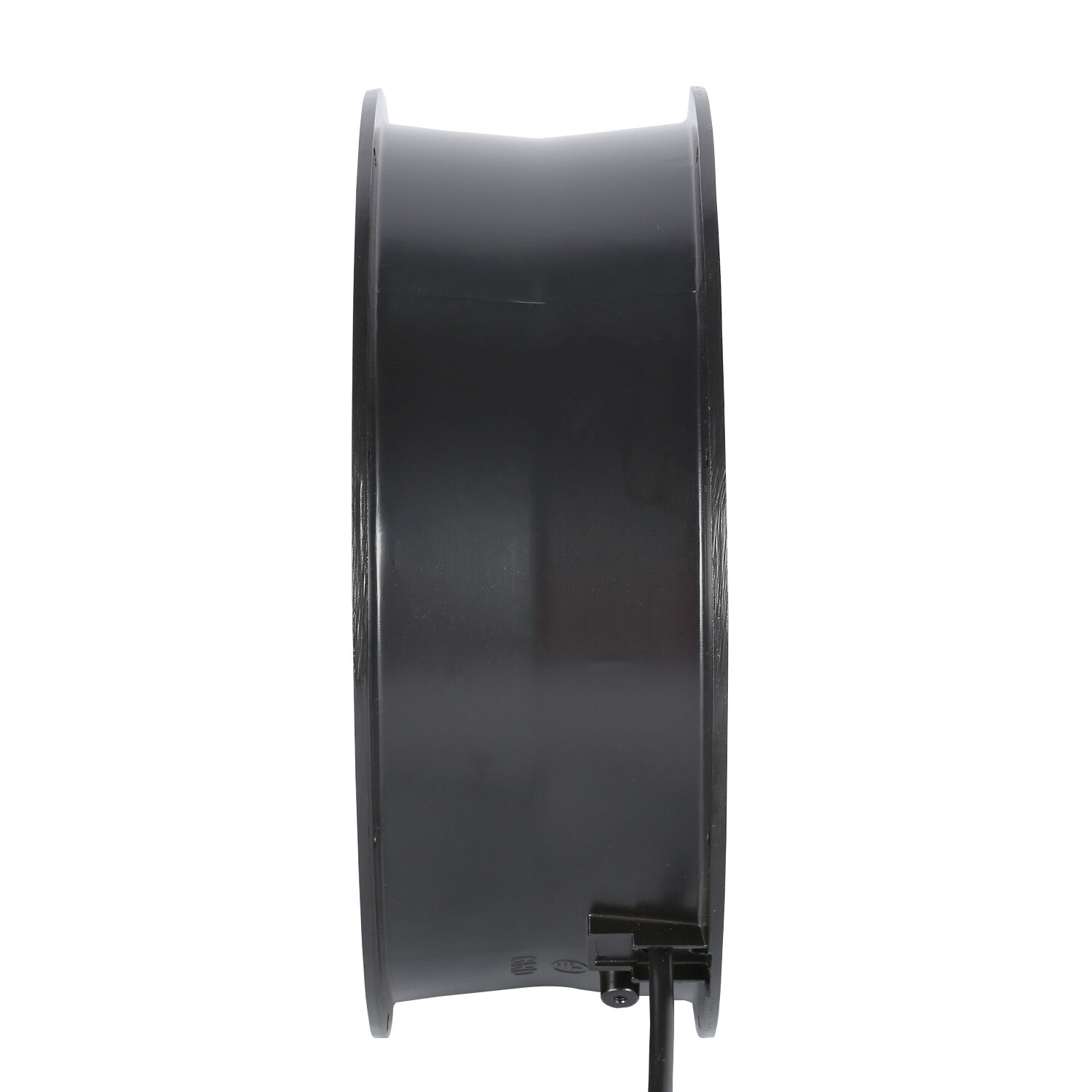

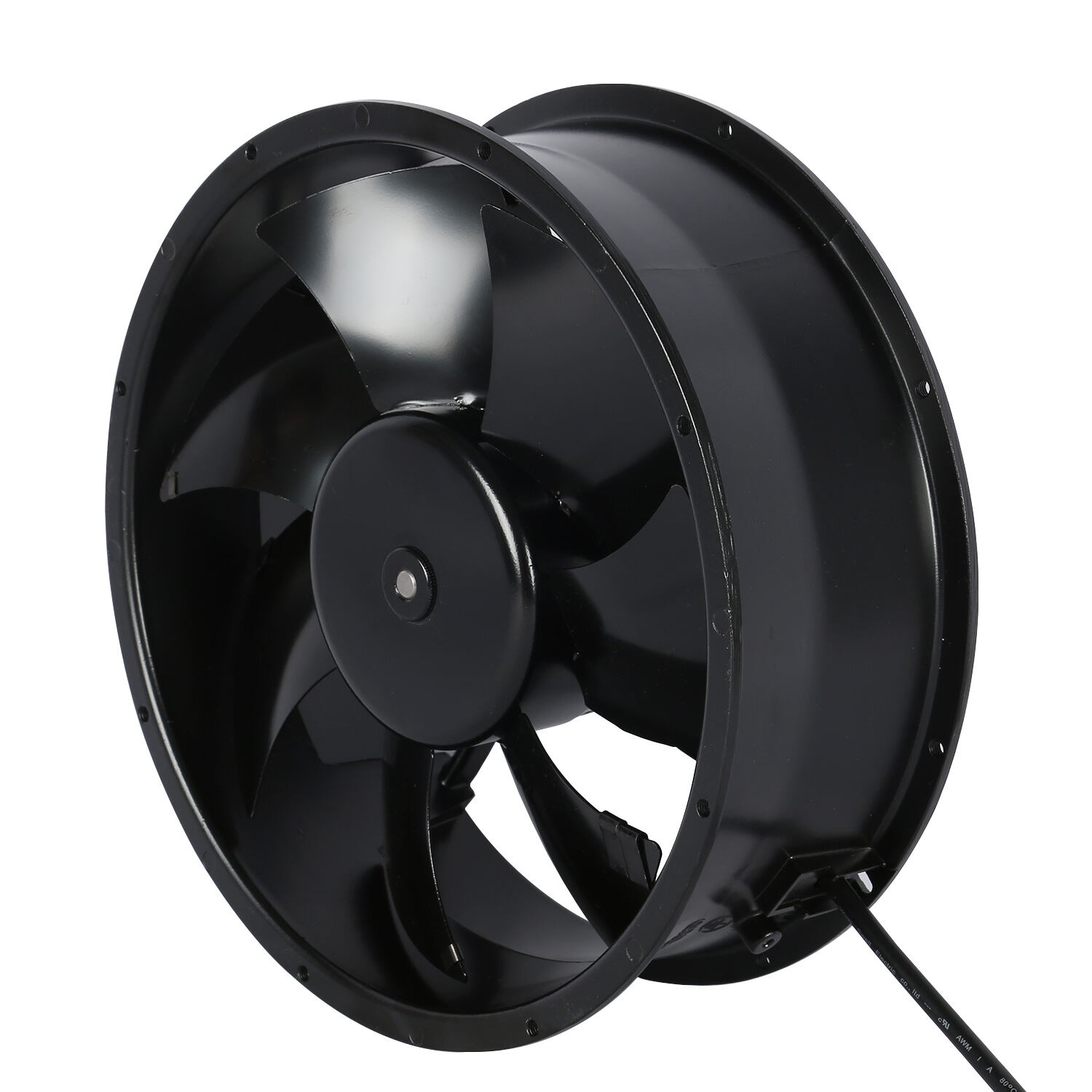

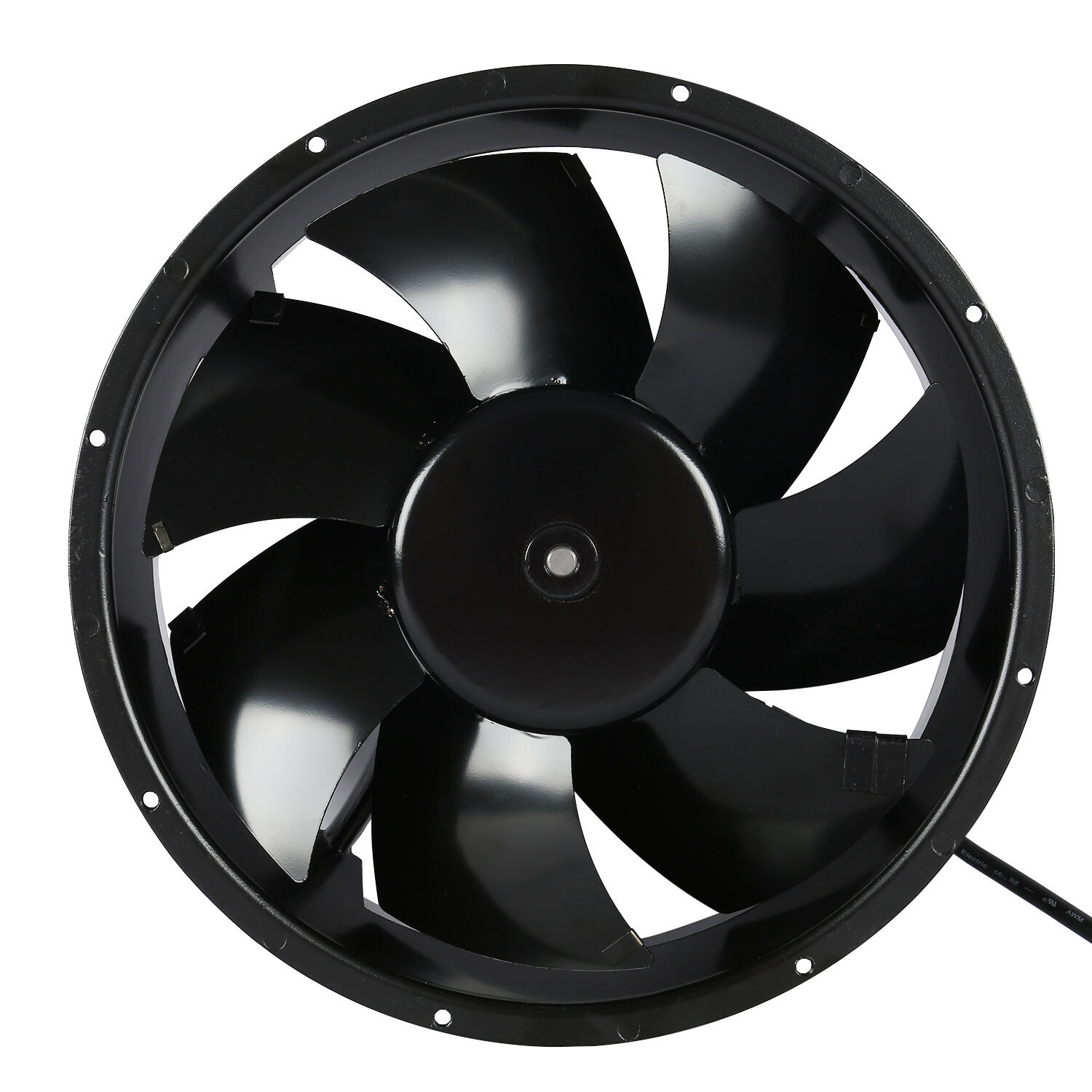

FW3G215-24GL-90
| Nominal Voltage | VDC | 24 |
| Current draw | A | 3.8±10% |
| Speed(RPM) | min-1 | 3300±5% |
| Power consumption | W | 90±10% |
| Max. Air Flow | CFM / m3 /H | 1086.9/1846.9 |
| Max. Static Pressure | In.wg /Pa | Class B |
20pcs
Brief Description
The FW3G215-24GL-90 is a DC axial fan with an integrated wall ring, designed for low-temperature environments and capable of stable operation down to -40℃. Powered by 24VDC, it delivers a high airflow of 1846.9 m³/h, supports 0–10VDC and PWM speed control, and is suitable for various ventilation and circulating cooling systems.

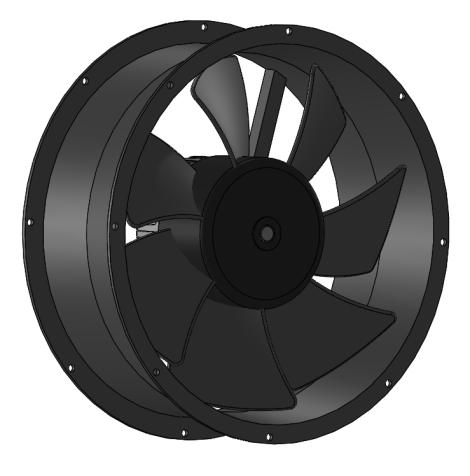

Product Specification
The FW3G215-24GL-90 is a DC axial fan featuring a wall ring structure, equipped with a BLDC92 external rotor brushless motor, rated for 24VDC with an input range of 16–28VDC. It provides a maximum airflow of 1846.9 m³/h, operates at 3300±5% RPM with a power consumption of 90W and a sound pressure level of 72 dB(A), making it suitable for high-airflow, low-static-pressure ventilation applications. Its operating temperature range extends from -40℃ to 60℃, ensuring reliable performance in cold environments. Electrically, it offers a dielectric withstand voltage of 600VAC and includes safety features such as current limitation, soft start, over/under voltage protection, locked-rotor protection, thermal overload protection, and reverse polarity protection. The mechanical construction uses a galvanized steel sheet impeller and a die-cast aluminum end cover, with a 215mm diameter impeller and seven blades, supports installation in any orientation, and has a total weight of approximately 2050g. Control options include 0–10VDC analog and PWM (1–10kHz) speed adjustment, along with an FG tachometer output (4 pulses per revolution). Compliant with CE, RoHS, ISO9001, and ErP standards, this fan is well-suited for low-temperature storage ventilation, industrial equipment cooling, cabinet air circulation, and environmental air exchange applications.
Nominal Date
| DC Axial fans with wall ring |  |
|
| Type | FW3G215-24GL-90 | |
| Model | BLDC92 | |
| Nominal Voltage | VDC | 24 |
| Voltage range | VDC | 16~28 |
| Current draw | A | 3.8±10% |
| Speed(RPM) | min-1 | 3300±5% |
| Power consumption | W | 90±10% |
| Sound Pressure Level | dB(A） | 72±5% |
| Max. Air Flow | CFM / m3 /H | 1086.9/1846.9 |
| Max. Static Pressure | In.wg /Pa | Class B |
| Insulation class | ~ | IP44 |
| Degree of protection | ~ | 0~10VDC / PWM |
| Control Input | ~ | FG (Tach output ) |
| Signal Output | ~ | 24 |

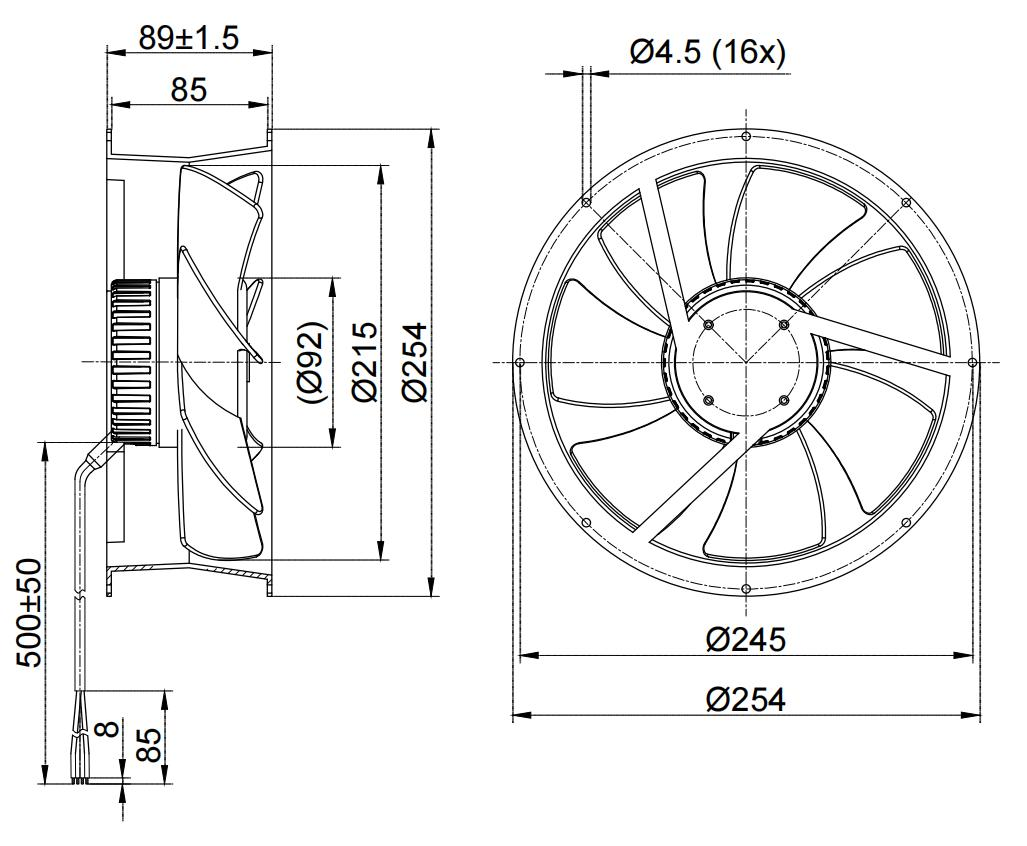

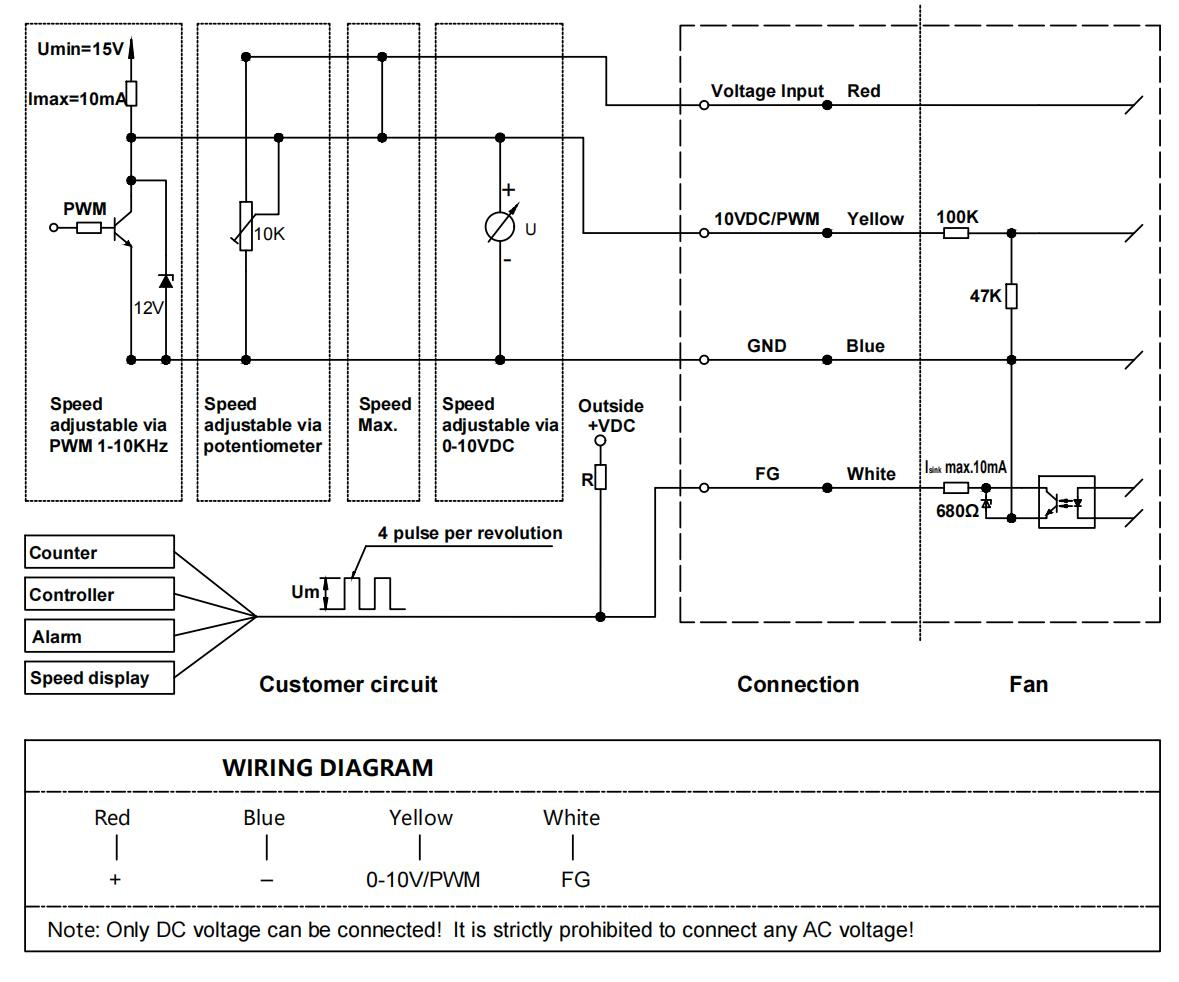

Connection diagram
Remarks：
Ⅰ. Standard cable length Refer to the figure below. The length of cable can be customized
Ⅱ. Conventional mode is 0-10V/PWM control, can optionally replace the communication protocol, detailed communication protocol, please contact technical personnel

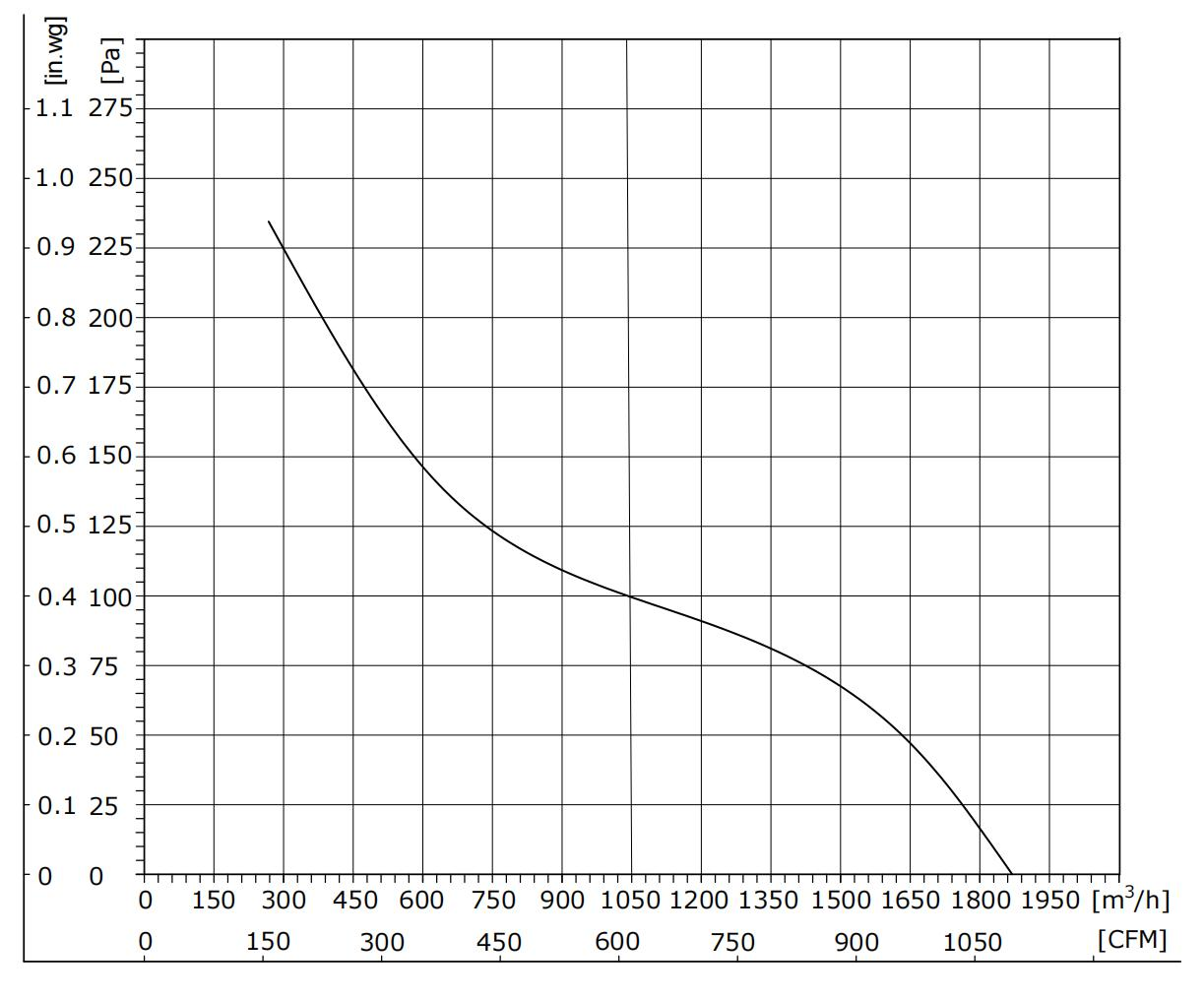

Aerodynamic Performance Charts
Test condition：
Ⅰ.The test data is obtained under the specified environment conditions and installation mode
Ⅱ.Input Voltage---Operating voltage
Ⅲ.Temperature---Room temperature 25℃
Ⅴ.Humidity---65%RH
Safety Requirements
Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off
Ⅱ.Do not plug or unplug the fan lead plug when the fan is running
Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury
Ⅳ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds
Ⅴ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product
Ⅵ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer
Ⅶ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading
Advantages:
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
