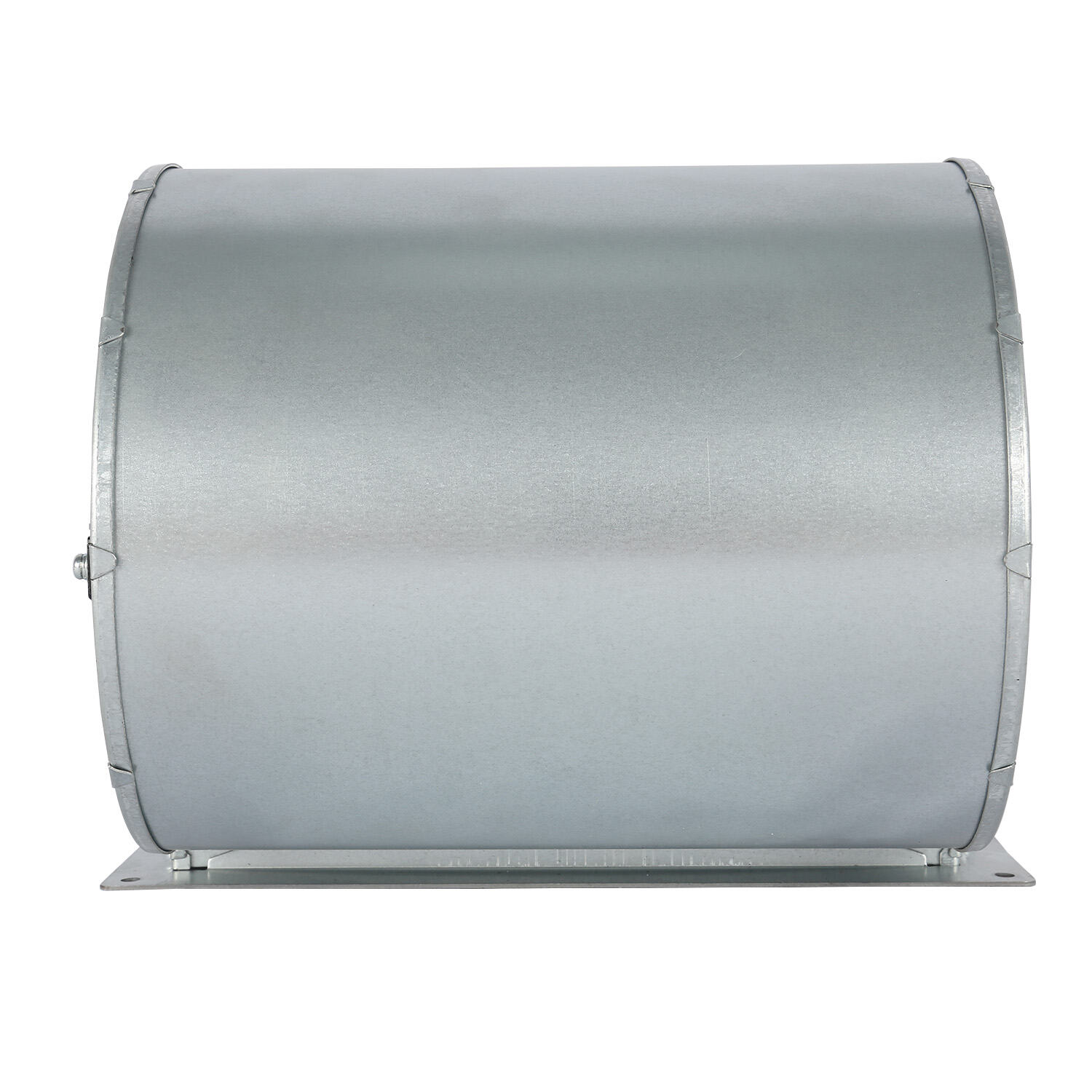

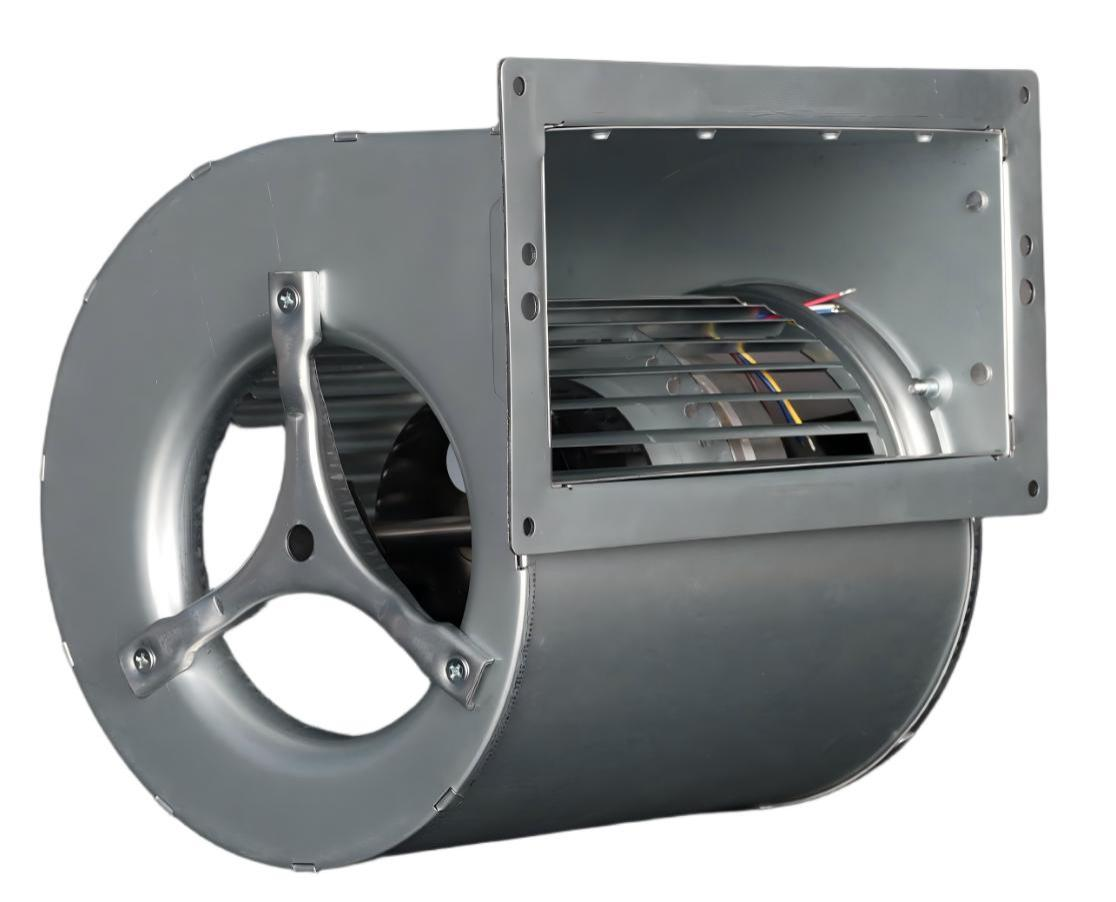

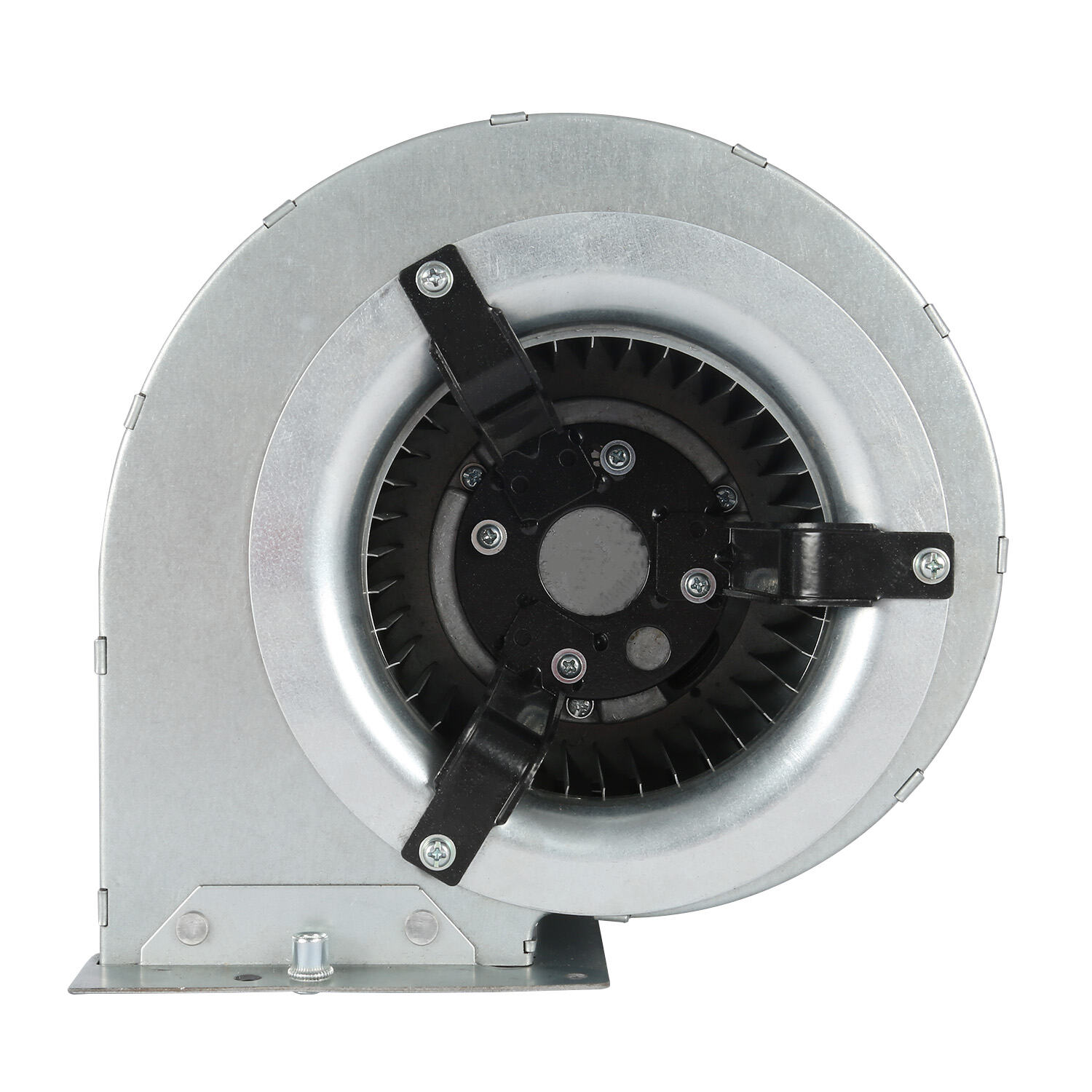

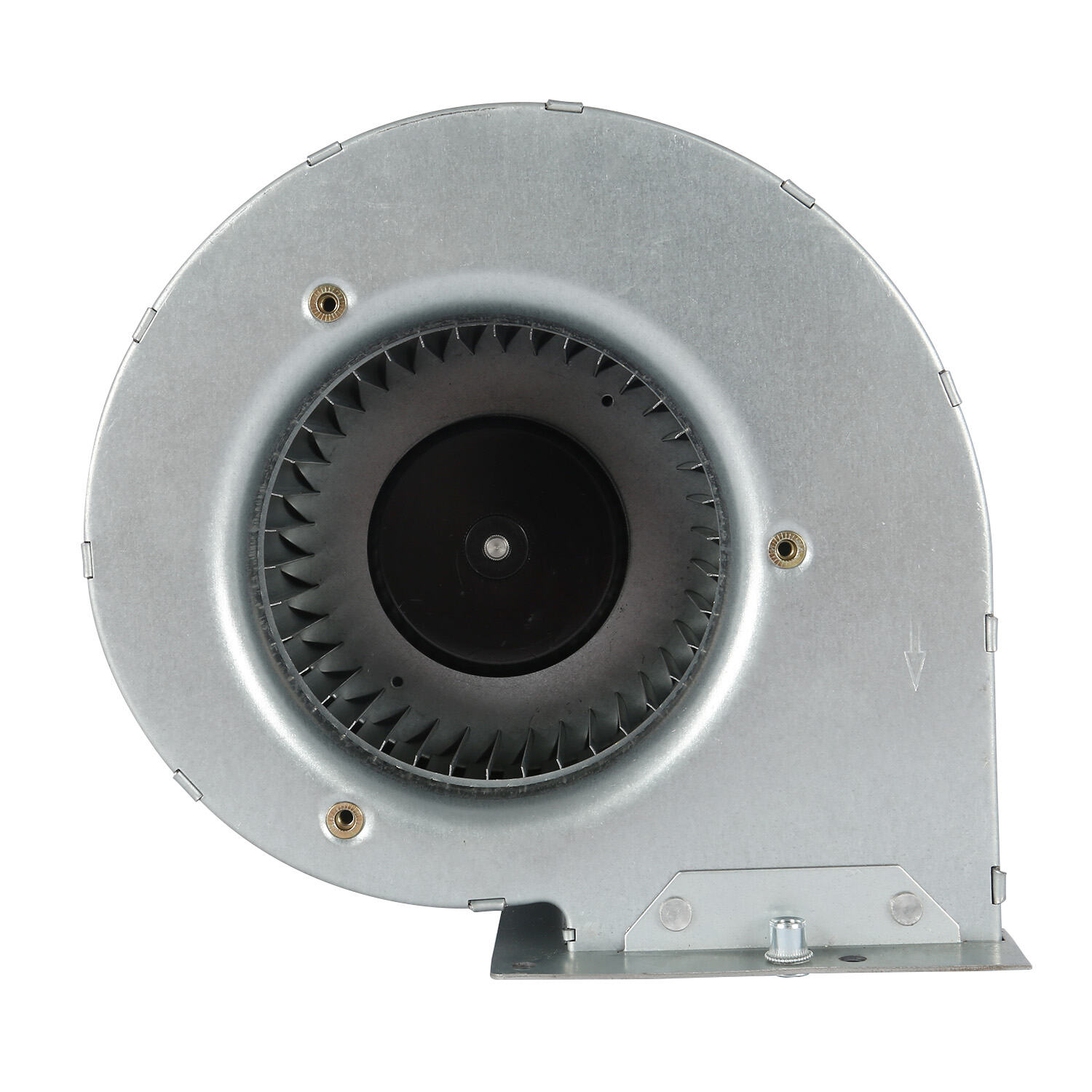

FD3G146-24GL-90
| Nominal Voltage | VDC | 24 |
| Current draw | A | 8.0±10% |
| Speed(RPM) | min-1 | 1700±5% |
| Power consumption | W | 190±10% |
| Max. Air Flow | CFM / m3 /H | 706.2/1200 |
| Max. Static Pressure | In.wg /Pa | 1.7/425 |
20pcs
Brief Description
The FD3G146-24GL-90 is a DC-powered dual-inlet centrifugal fan featuring a three-phase brushless DC motor, designed for efficient heat dissipation and stable operation. With a rated voltage of 24VDC and a wide input range (16–28VDC), it delivers a maximum airflow of 1200 m³/h and a static pressure of 425Pa, making it suitable for various ventilation and cooling applications. Equipped with multiple electronic protections such as soft start, over/under voltage detection, locked-rotor protection, and reverse polarity protection, it ensures reliable performance even in demanding environments. The product complies with CE, RoHS, and other international certifications, and is ideal for industrial equipment, HVAC systems, and mechanical cooling.
Product Specification
This fan incorporates an external rotor brushless DC motor and a 38-blade impeller made of galvanized steel sheet with a diameter of 146mm, housed in a die-cast aluminum cover for robust construction and effective heat dissipation. Electrically, it supports 0–10VDC or PWM speed control and provides an FG tachometer output for system integration and monitoring. With insulation class B and IP44 protection, it operates continuously in ambient temperatures from -25℃ to 60℃ and can be stored at temperatures as low as -40℃. Mechanically, it allows installation in any orientation and uses ball bearings for extended service life and low noise operation (sound pressure level approx. 66dB(A)). The fan comes with clear wiring definitions and comprehensive safety instructions, including protections against reverse connection and cable strain, ensuring safe usage. Overall, it meets multiple safety and performance standards such as EN ISO12100, EN 60204-1, and GB12350, making it a dependable choice for industrial and commercial applications requiring high reliability.
Nominal Date
| DC Dual inlet Centrifugal Fan |  |
|
| Type | FD3G146-24GL-90 | |
| Model | BLDC92 | |
| Nominal Voltage | VDC | 24 |
| Voltage range | VDC | 16~28 |
| Current draw | A | 8.0±10% |
| Speed(RPM) | min-1 | 1700±5% |
| Power consumption | W | 190±10% |
| Sound Pressure Level | dB(A） | 66±5% |
| Max. Air Flow | CFM / m3 /H | 706.2/1200 |
| Max. Static Pressure | In.wg /Pa | 1.7/425 |
| Insulation class | ~ | Class B |
| Degree of protection | ~ | IP44 |
| Control Input | ~ | 0~10VDC / PWM |
| Signal Output | ~ | FG (Tach output ) |

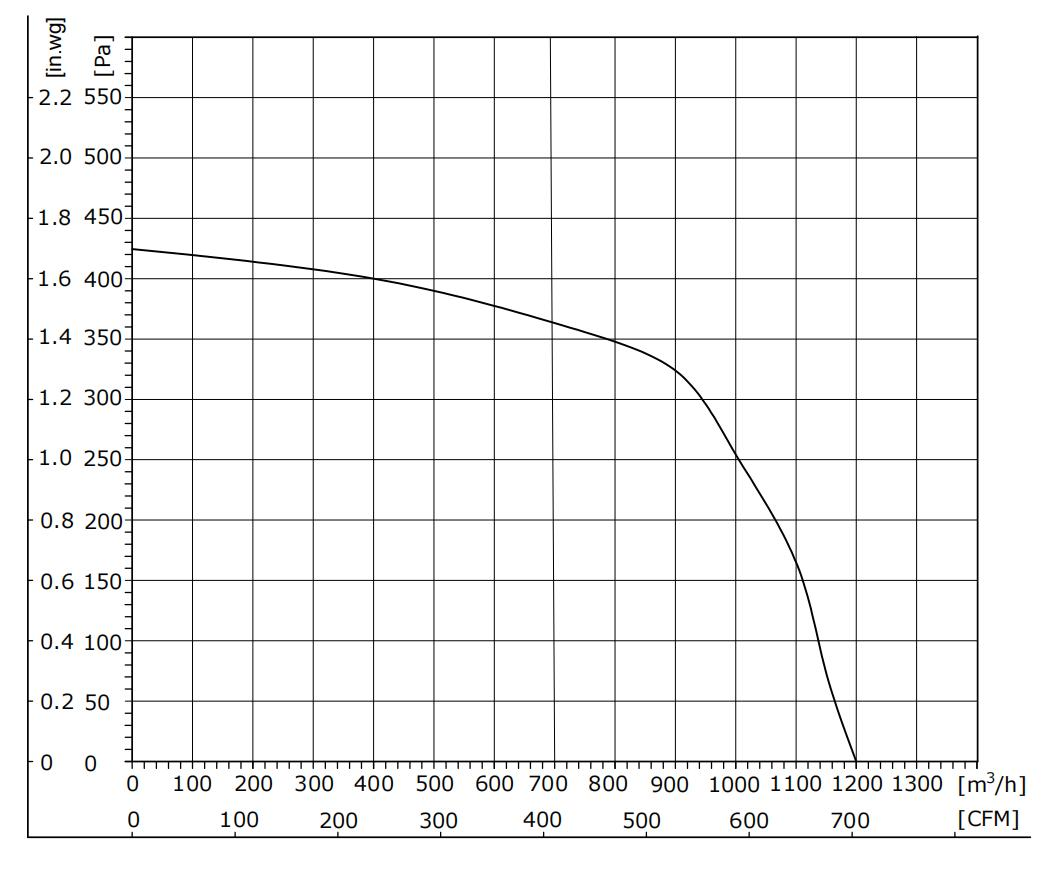

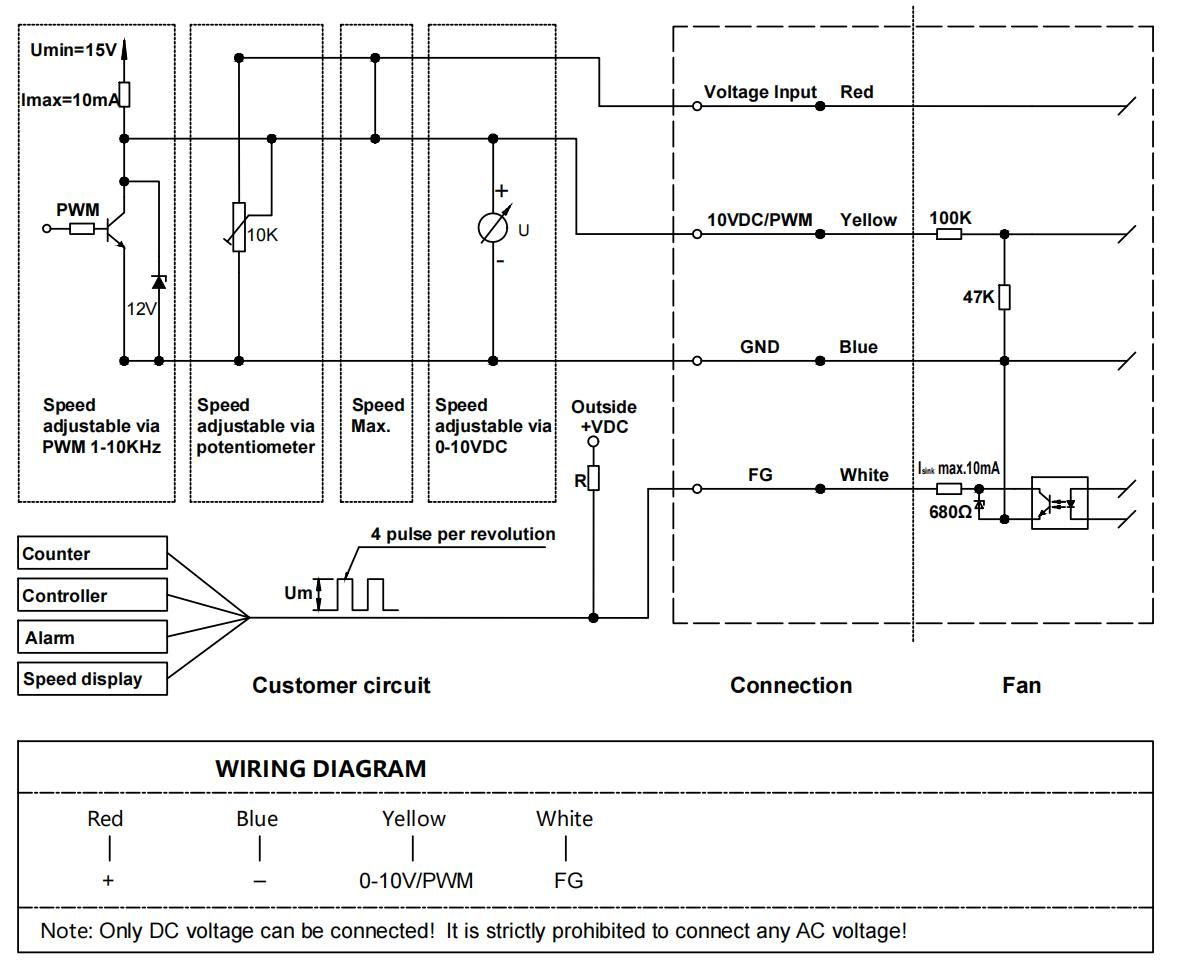

Connection diagram
Remarks：

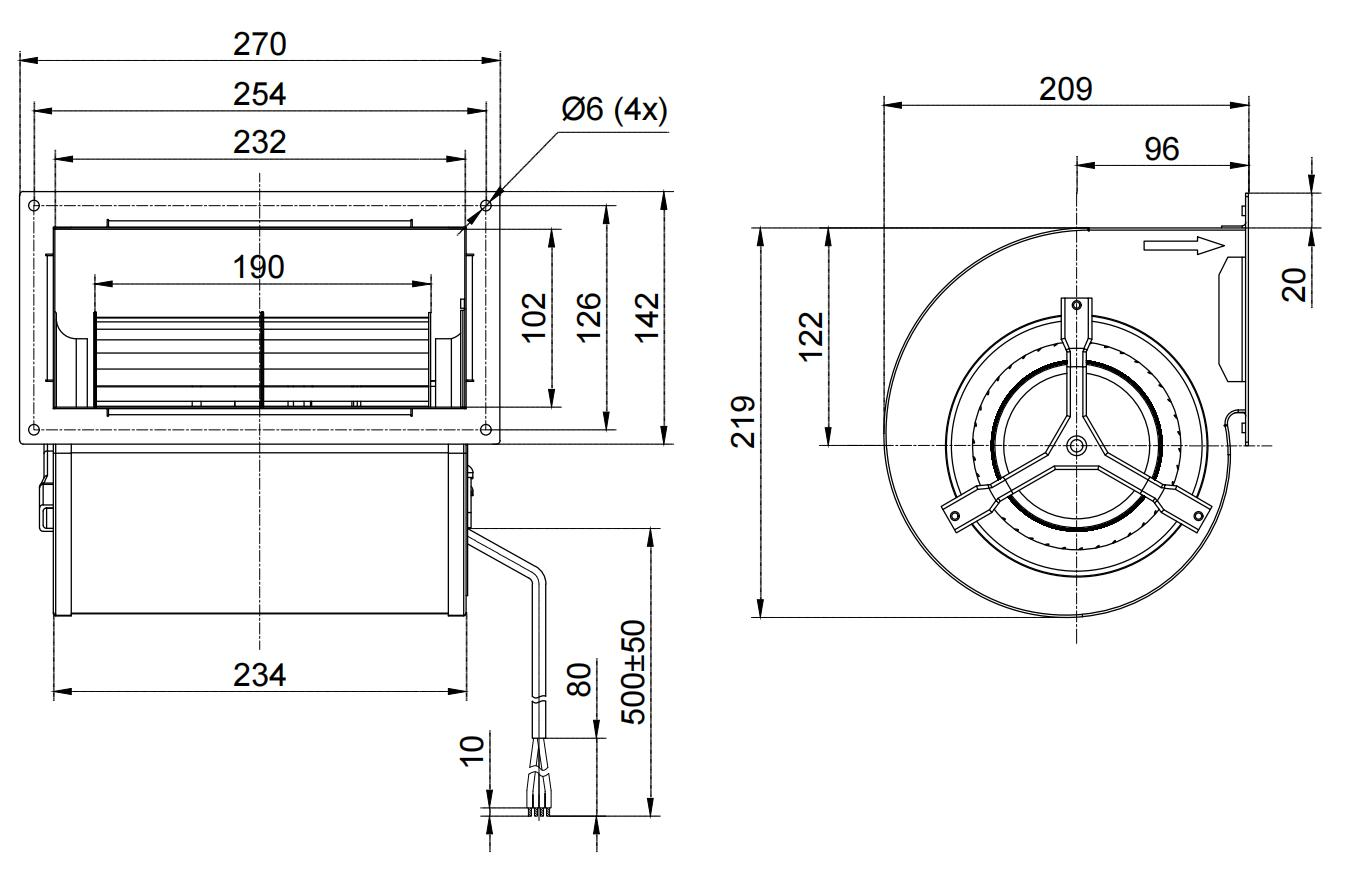

Ⅰ. Standard cable length Refer to the figure below. The length of cable can be customized
Ⅱ. Conventional mode is 0-10V/PWM control, can optionally replace the communication protocol, detailed communication protocol, please contact technical personnel
Test condition：
Ⅰ.The test data is obtained under the specified environment conditions and installation mode
Ⅱ.Input Voltage---Operating voltage
Ⅲ.Temperature---Room temperature 25℃
Ⅴ.Humidity---65%RH
Safety Requirements
Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off
Ⅱ.Do not plug or unplug the fan lead plug when the fan is running
Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury
Ⅳ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds
Ⅴ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product
Ⅵ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer
Ⅶ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading
