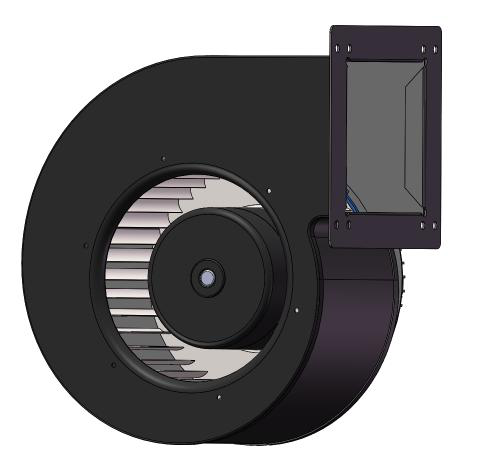

FS3G180-2AGL-24 Single Inlet Centrifugal Blower, 230VAC, 180mm, 1330 m3/h

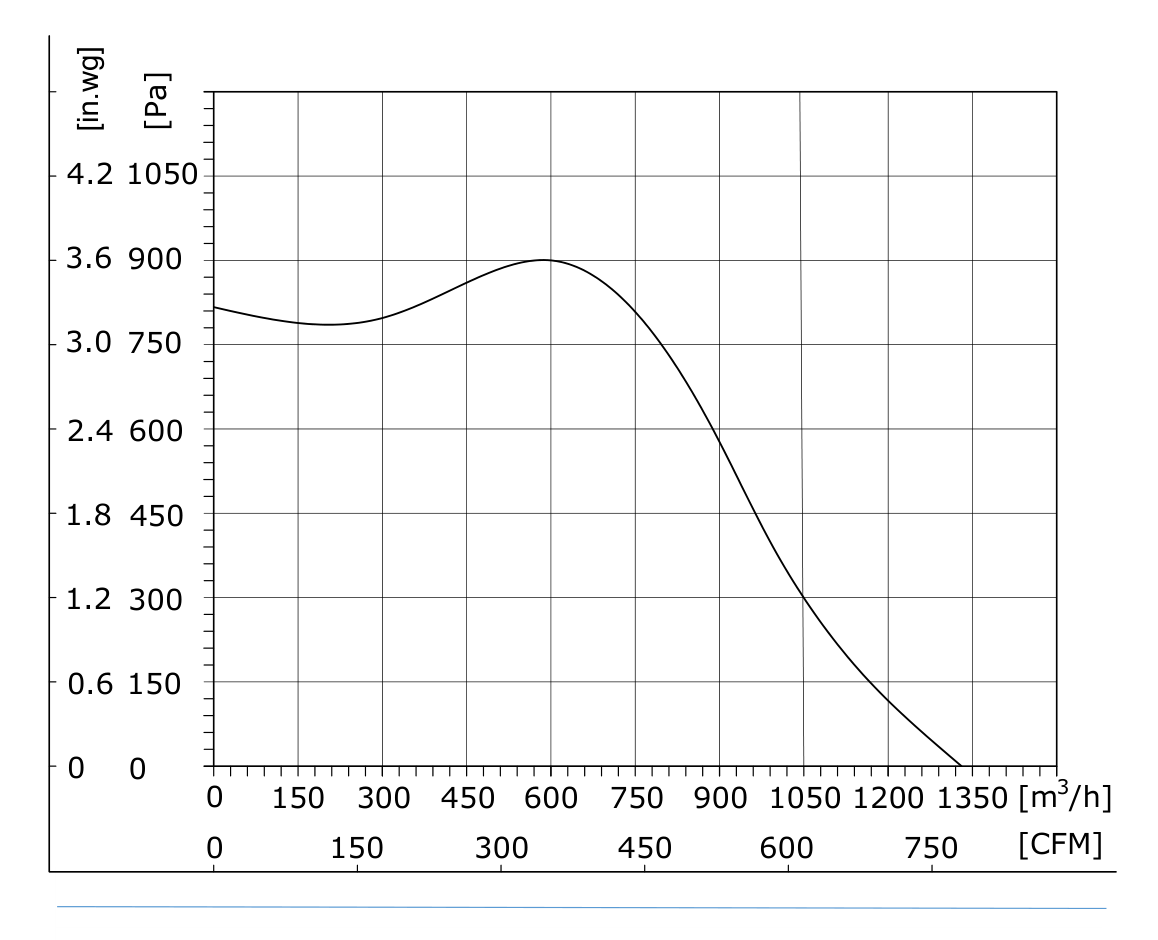

The FS3G180-2AGL-24 is a high‑static‑pressure single‑inlet centrifugal blower engineered to drive air through long duct runs, dense filtration stacks, and multi‑outlet distribution systems without performance sag. At 230 VAC with a wide 184–270 V input tolerance, this EC blower delivers up to 782.7 CFM (1330 m3/h) of airflow while generating a maximum static pressure of 3.25 in.wg (812 Pa) – enough to overcome restrictive HVAC components. Its 400 W BLDC motor with integrated electronics provides variable speed control with a simple 0–10 V or PWM interface, allowing precise modulation for energy‑saving operation. The 180 mm cold‑rolled steel impeller, combined with a die‑cast aluminum housing, ensures robust industrial durability, wear resistance, and extended service life even in demanding ventilation environments. Rated at 73 dB(A) and 1980 RPM, this blower balances acoustic comfort with heavy‑duty output, making it an ideal single‑fan replacement for multiple smaller units in commercial and industrial setups. It features thermal overload protection, Class B insulation, and sealed ball bearings rated for 50,000 hours of continuous duty. Applications include HVAC air handling units, cleanroom pressurization, dust collection, fume extraction, and agricultural ventilation. The FS3G180‑2AGL‑24 meets CE and RoHS certifications, ensuring compliance for global OEM and ODM projects. Choose FANOVA for a reliable, high‑performance centrifugal blower that simplifies system design and reduces installation complexity.

The FS3G180-2AGL-24 is a heavy‑duty single‑inlet centrifugal blower specifically engineered for high‑static‑pressure applications, where conventional fans lose airflow. At the heart of this unit is a 180 mm forward‑curved impeller fabricated from cold‑rolled steel plate, designed to deliver up to 782.7 CFM (1330 m3/h) against a static pressure of 3.25 in.wg (812 Pa). The impeller is dynamically balanced to minimize vibration and ensure smooth operation at 1980 RPM. The blower is driven by a BLDCEC102 brushless DC motor operating on 230 VAC (input range 184–270 V) with a rated current of 1.85 A and power consumption of 400 W. The motor features integrated EC technology, enabling continuous speed control via an external 0–10 V analog signal or PWM input, allowing precise matching of airflow to system demand and delivering significant energy savings compared to fixed‑speed AC fans. The rotor, with a diameter of 102 mm, is housed in a die‑cast aluminum endcap and housing, providing excellent thermal conductivity, structural rigidity, and corrosion resistance. The blower is equipped with high‑quality ball bearings (sealed for life) rated for 50,000 hours at 40°C ambient, ensuring long‑term reliability in continuous operation. Electrical protection includes built‑in overcurrent, overvoltage, and thermal overload safeguards, in addition to Class B insulation, making the unit suitable for a wide range of environmental conditions. The electrical interface consists of an 18 AWG cable with a length of 262 mm, which can be customized for OEM integration. For high‑static‑pressure duties, the FS3G180‑2AGL‑24 excels in HVAC air handling, where it can replace multiple fans, reducing system size and cost. It also performs exceptionally well in high‑efficiency particulate air (HEPA) filtration, long duct networks, and pneumatic conveying lines. The blower operates with a noise level of 73 dB(A), which is acceptable for industrial environments while allowing placement away from occupied spaces. All components are manufactured in ISO‑9001 certified facilities, and the product complies with CE and RoHS directives. FANOVA provides full OEM/ODM support, including custom voltage, speed, connectors, and impeller materials to meet specific application requirements. With its combination of high static pressure, robust steel impeller, and energy‑efficient EC motor, the FS3G180‑2AGL‑24 is the definitive choice for demanding ventilation and air movement challenges.

AC Single Inlet Centrifugal Blower
Type	FS3G180-2AGL-24
Model	BLDCEC102

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

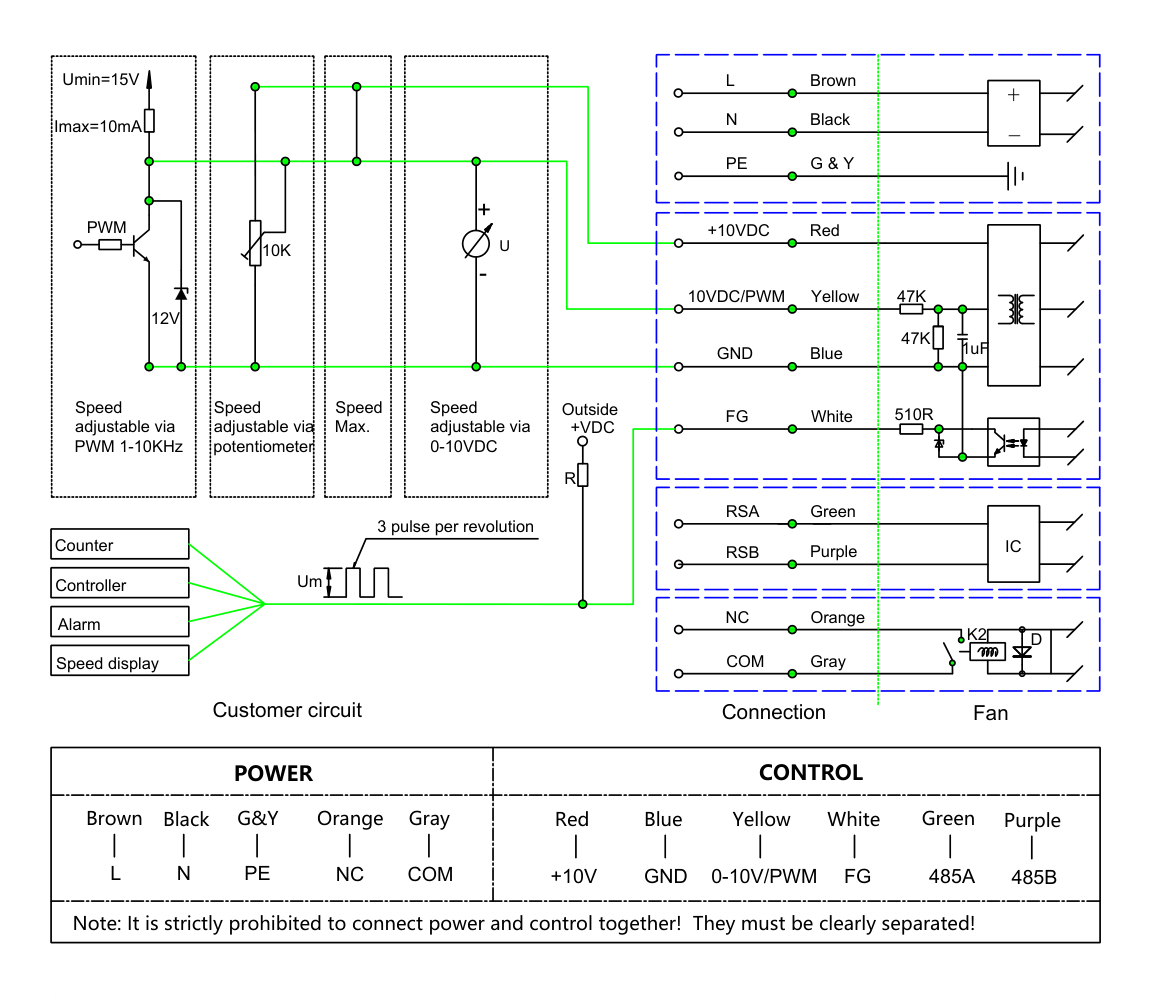

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

1. High Efficiency: The FS3G180-2AGL-24 delivers 1330 m3/h at 812 Pa while drawing only 400W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 180mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

5. Easy Installation and Maintenance: Compact 180mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
