FG3G200-24GL-90 Axial Fan, 24VDC, 200mm, 1205 m3/h

The FG3G200-24GL-90 axial fan redefines low-voltage air movement by pairing a whisper-quiet 62 dB(A) acoustic profile with a robust 709 CFM airflow, making it an ideal choice for noise-sensitive environments like medical laboratories and office ventilation systems. Engineered around a 24VDC brushless DC motor, this compact 200mm fan delivers 1205 m3/h while consuming only 60W, offering a sustainable alternative to multiple smaller fans in space-constrained equipment. Its galvanized steel impeller and die-cast aluminum housing provide exceptional durability in demanding industrial settings, resisting corrosion and mechanical wear over a long service life. The motor operates across a wide 16-28V voltage range, ensuring reliable performance in solar-powered, off-grid, and battery-backed installations where low-voltage safety is paramount. With a maximum static pressure of 250 Pa, it efficiently handles moderate duct resistance and filter loads, making it versatile for cabinet cooling, cleanroom pre-filtration, and telecom enclosures. The integrated speed control interface allows precise modulation via PWM or analog signals, enabling energy optimization without compromising airflow stability. Protected with advanced insulation and thermal overload safeguards, this fan maintains dependable operation under continuous duty cycles. Backed by FANOVA's OEM/ODM expertise, the FG3G200-24GL-90 meets global certification standards, ensuring compliance for export-oriented projects. Choose this 24V axial fan for a perfect blend of quietness, efficiency, and rugged construction.

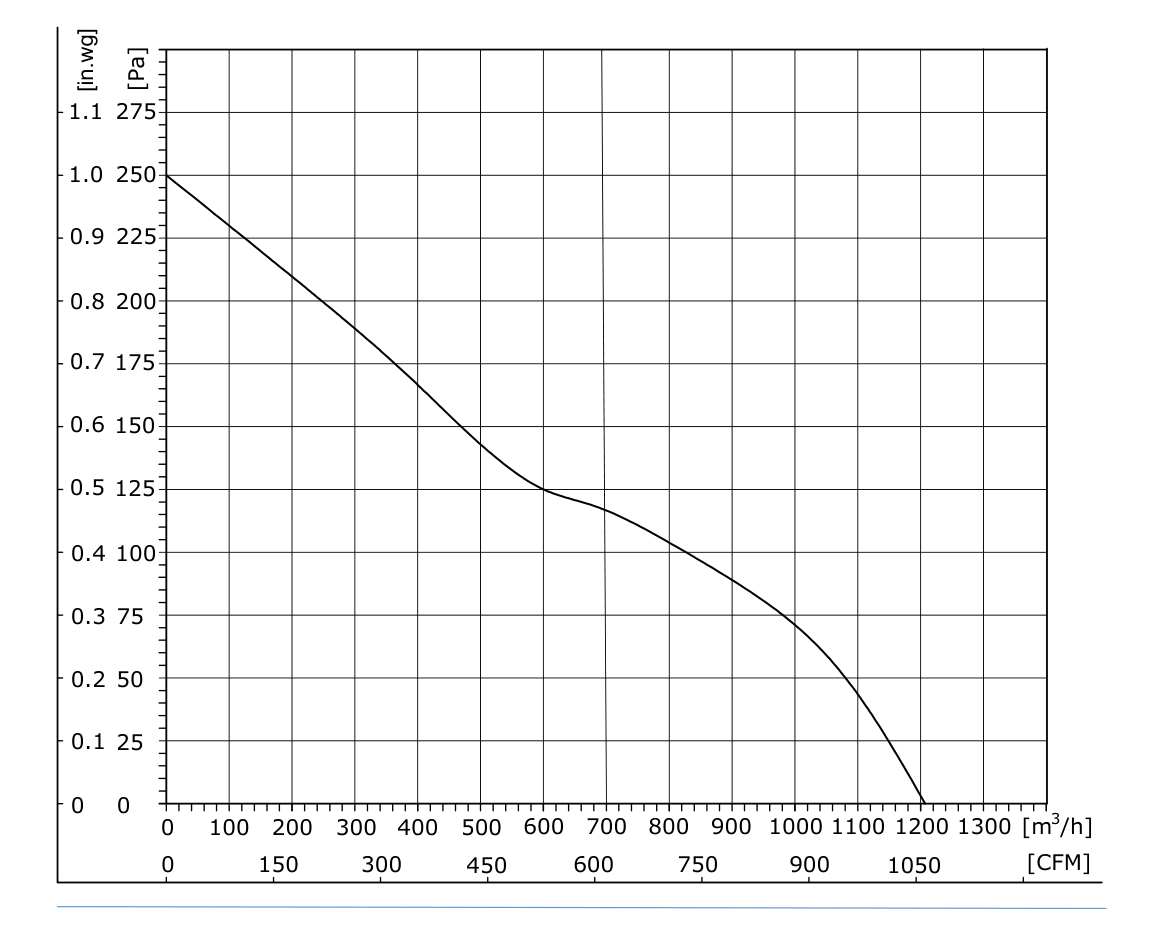

The FG3G200-24GL-90 is a 24VDC axial fan engineered for applications demanding low acoustic emissions, high energy efficiency, and robust mechanical integrity. Its impeller, constructed from galvanized steel sheet, features a 200mm diameter with optimized blade geometry that maximizes air delivery while minimizing turbulence-induced noise. The die-cast aluminum endcaps and housing provide exceptional rigidity and thermal conductivity, dissipating motor heat effectively and enhancing overall reliability. At the heart of the fan is a BLDCDC92 brushless DC motor, operating over a nominal 24V input with a safe range of 16 to 28V, allowing stable operation under varying power supply conditions, typical of solar arrays or battery banks. The motor draws 2.5A at full speed, consuming just 60W, yet generates up to 709 CFM (1205 m3/h) of airflow and 250 Pa of static pressure at 3000 RPM, balancing performance with power economy. Acoustic output is capped at 62 dB(A), below typical conversational speech levels, making the fan suitable for quiet office environments, medical diagnostic equipment, and laboratory fume hoods where noise pollution must be minimized. Speed control is facilitated through an external PWM or analog voltage interface, enabling precise adjustment of airflow to match real-time thermal loads, thereby reducing energy consumption and extending bearing life. The fan employs dual ball bearings, rated for a minimum of 50,000 hours at 40°C, ensuring long-term operational stability in continuous-duty applications. Electrical connectivity is provided via a 500mm, 20AWG lead wire, stripped and tinned for secure terminal connections. The motor is protected against overcurrent, overvoltage, and locked-rotor conditions, with insulation Class B and an IP20 rating suitable for indoor, dust-protected environments. Manufactured under ISO9001 quality systems, the FG3G200-24GL-90 complies with CE, RoHS, and UL standards, making it export-ready for global OEMs. Its galvanized steel construction offers superior resistance to corrosion, abrasion, and moderate temperature extremes, ideal for industrial ventilation, HVAC units, and new energy storage systems. FANOVA's engineering support ensures custom cable lengths, connectors, and speed control protocols can be tailored to specific project needs, reinforcing this fan as a versatile, low-voltage solution for modern equipment designers.

DC Axial Fan
Type	FG3G200-24GL-90
Model	BLDCDC92

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

1. High Efficiency: The FG3G200-24GL-90 delivers 1205 m3/h at 250 Pa while drawing only 60W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 200mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

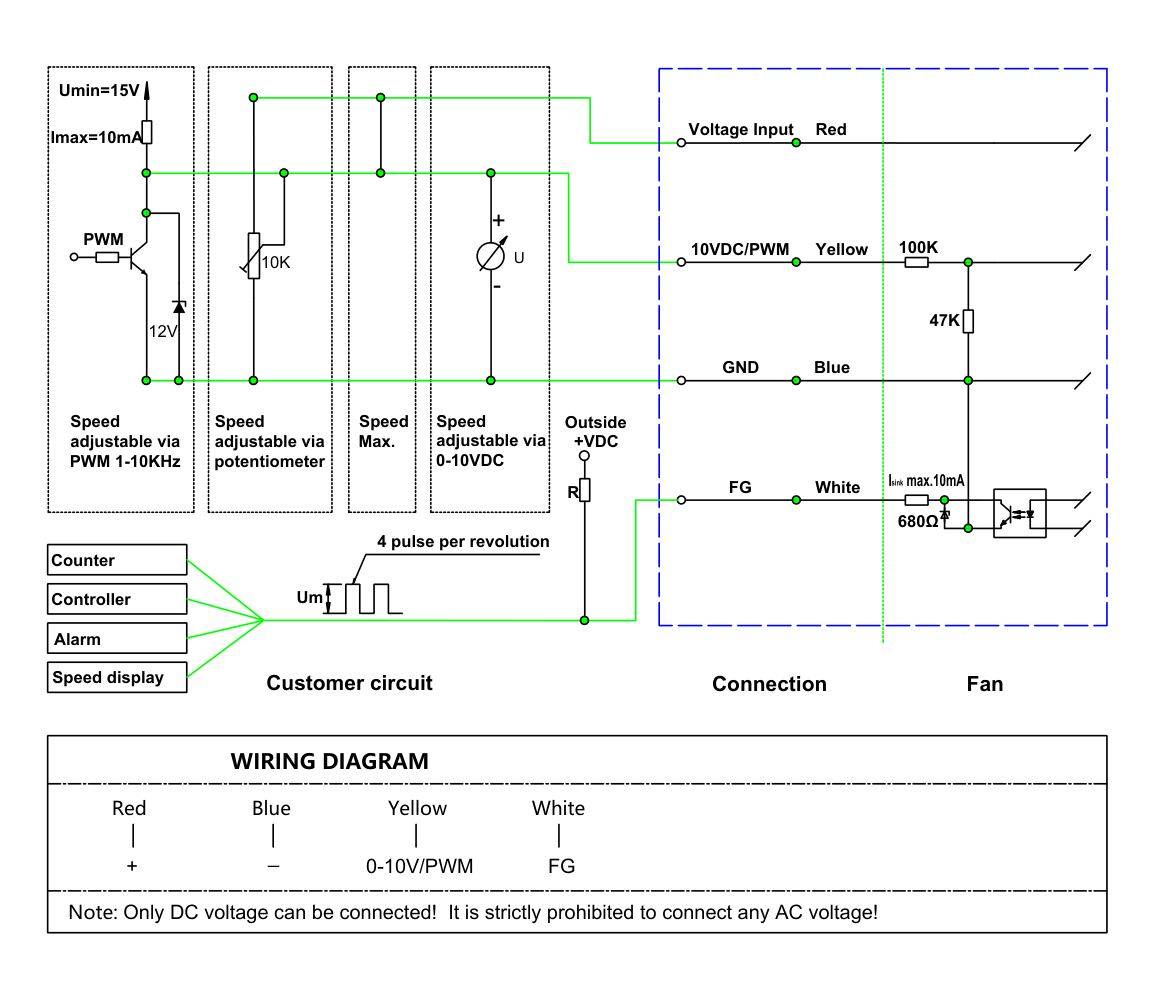

5. Easy Installation and Maintenance: Compact 200mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
