FB3G355-2AAL-20
| Nominal Voltage | VAC | 230 |
| Current draw | A | 1.7±10% |
| Speed(RPM) | min-1 | 2050±5% |
| Power consumption | W | 380±10% |
| Max. Air Flow | CFM / m3 /H | 2119.5/3601.5 |
| Max. Static Pressure | In.wg /Pa | 3.13/782 |
MOQ:5pcs
Brief Description

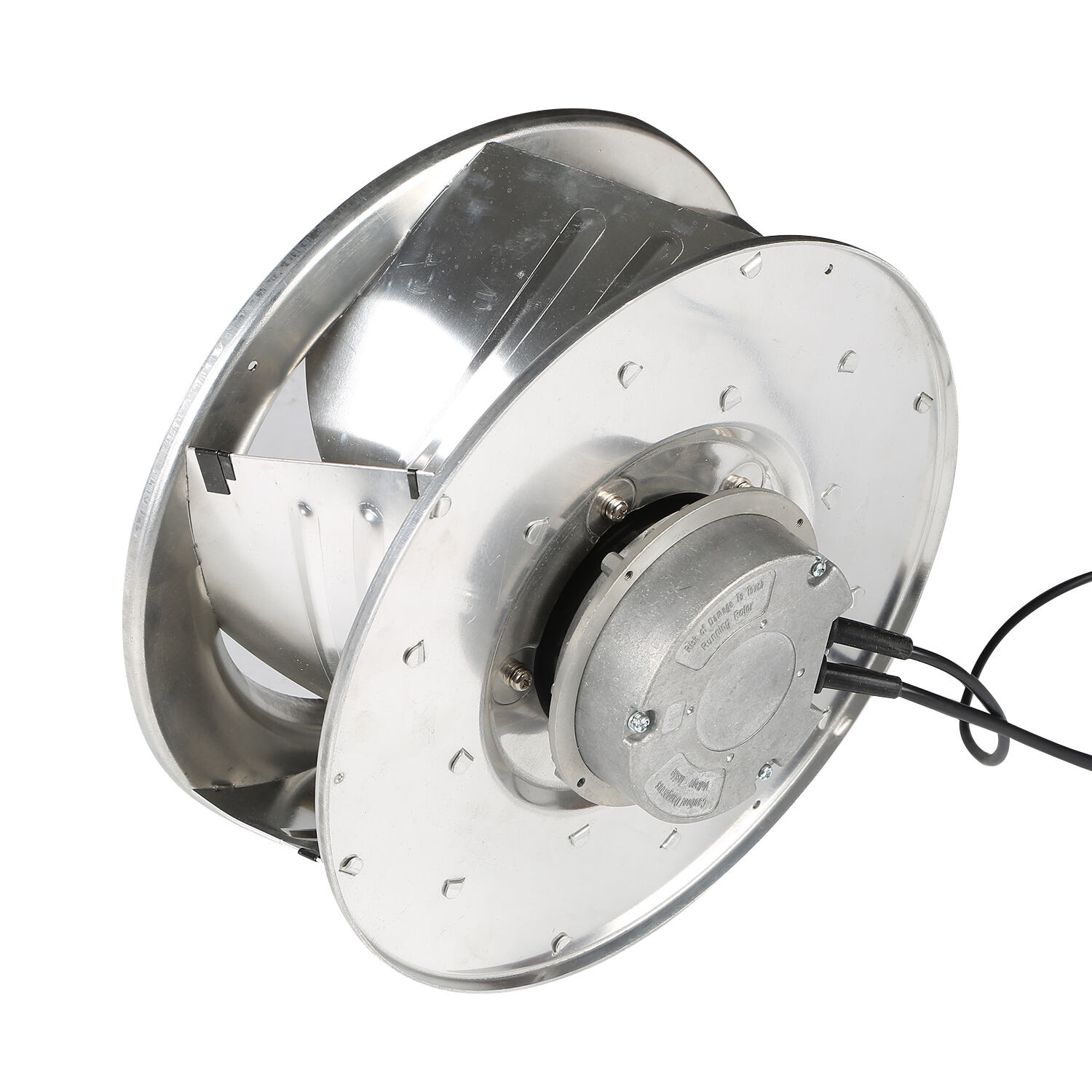

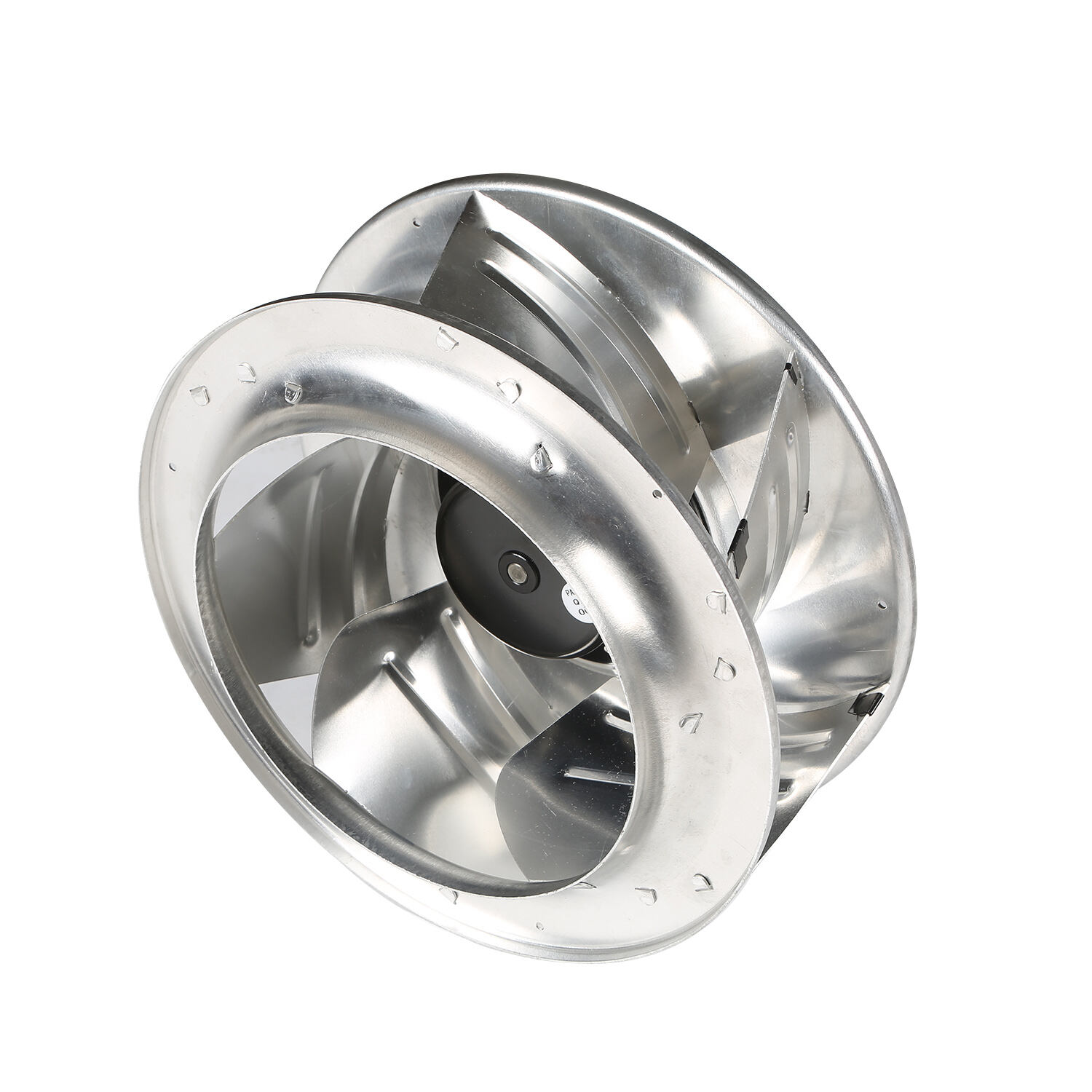

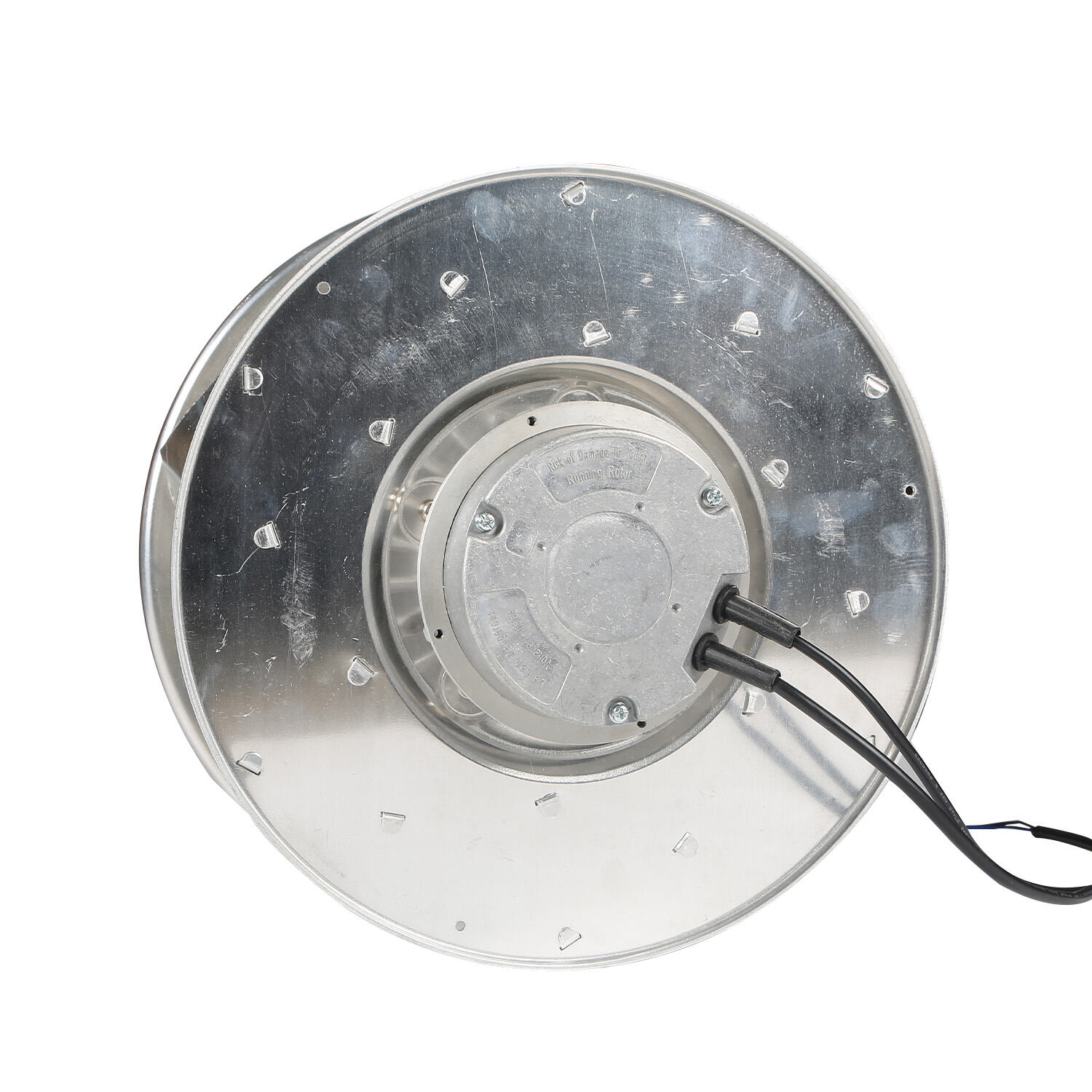

The FB3G355-2AAL-20 is an efficient, compact EC backward centrifugal fan, designed and manufactured by Fanova (Suzhou) Motor Technology Co., Ltd. Utilizing brushless DC motor technology, it delivers a high airflow (up to 3601.5 m³/h) and high static pressure (782 Pa). Supporting various control methods including 0–10VDC, PWM, and Modbus485, and with an IP65 protection rating, it is suitable for a wide range of industrial ventilation and cooling systems.
Product Specification
The FB3G355-2AAL-20 is a high-performance, industrial-grade EC backward centrifugal fan featuring a three-phase brushless DC external rotor motor (Model BLEC102) with a rated voltage of 230VAC, supporting a wide input range of 184–270VAC and 50/60Hz mains frequency. It delivers a maximum airflow of 3601.5 m³/h and a maximum static pressure of 782 Pa, operating at 2050±5% RPM with a power consumption of 380W and a sound pressure level of 76 dB(A). The fan incorporates comprehensive electrical protection features such as soft start, over/under voltage protection, locked-rotor protection, and motor thermal overload protection. Its robust construction uses die-cast aluminum for the impeller and end cover, with a 355mm diameter impeller and six blades, allowing for installation in any orientation. Rated IP65 for protection against dust and moisture, it is designed for a service life of 50,000 hours (L10, at 40°C ambient temperature). Control options include 0–10VDC, PWM (1–10kHz), and a Modbus485 communication interface for easy system integration and intelligent control. Compliant with international standards such as CE, RoHS, ISO9001, and ErP2015, it is ideal for demanding applications requiring high airflow and static pressure, including industrial ventilation, HVAC systems, and equipment cooling.
Nominal Data
| EC Backward Centrifugal Fan |  |
|
| Type | FB3G355-2AAL-20 | |
| Model | BLEC102 | |
| Phase | ~ | 1~ |
| Nominal Voltage | VAC | 230 |
| Voltage range | VAC | 184~270 |
| Frequency | Hz | 50/60 |
| Current draw | A | 1.7±10% |
| Speed(RPM) | min-1 | 2050±5% |
| Power consumption | W | 380±10% |
| Sound Pressure Level | dB(A） | 76±5% |
| Max. Air Flow | CFM / m3 /H | 2119.5/3601.5 |
| Max. Static Pressure | In.wg /Pa | 3.13/782 |
| Insulation class | ~ | Class B |
| Degree of protection | ~ | IP54 |
| Control Input | ~ | 0~10VDC / PWM/Modbus485 |
| Signal Output | ~ | FG (Tach output ) |

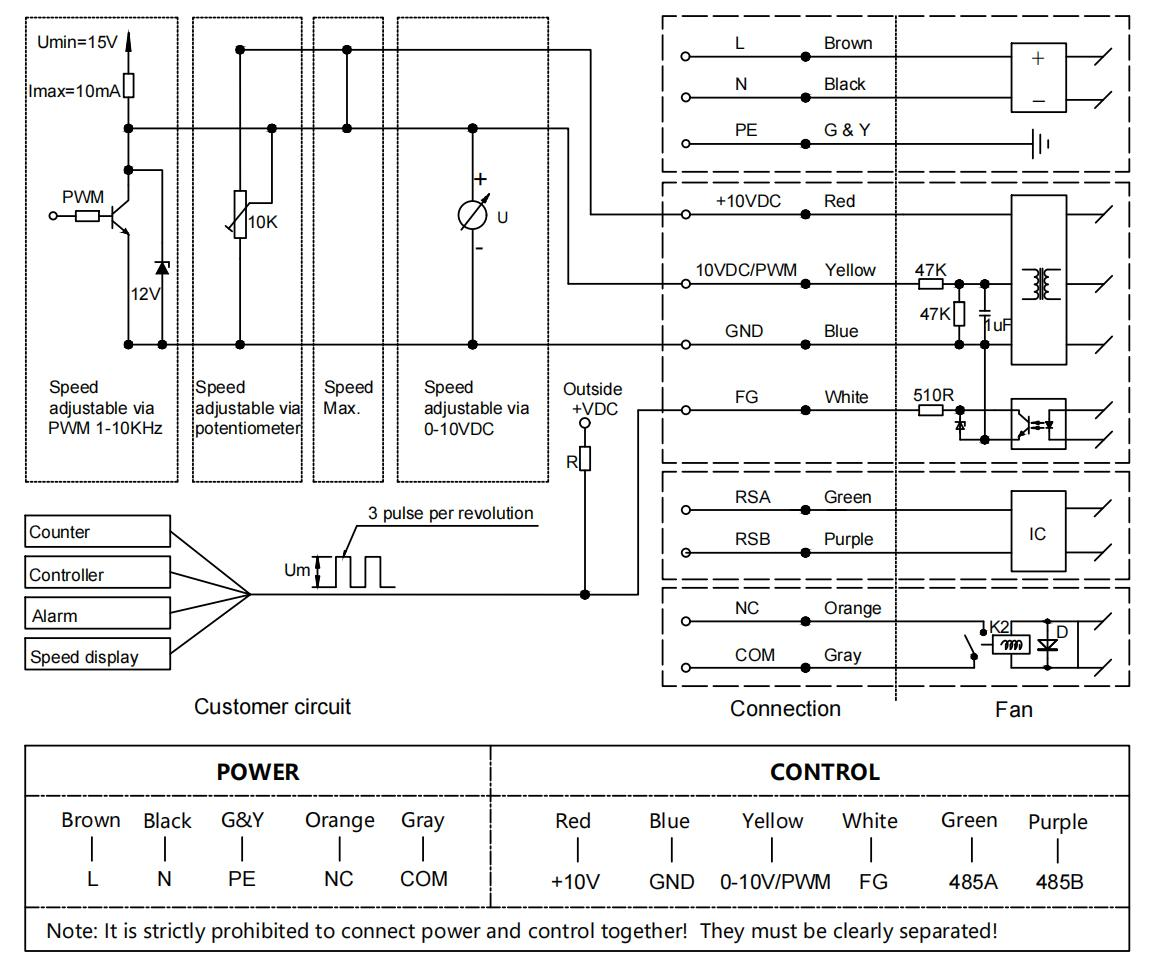

Connection diagram
Remarks：
Ⅰ. Standard cable length Refer to the figure below. The length of cable can be customized

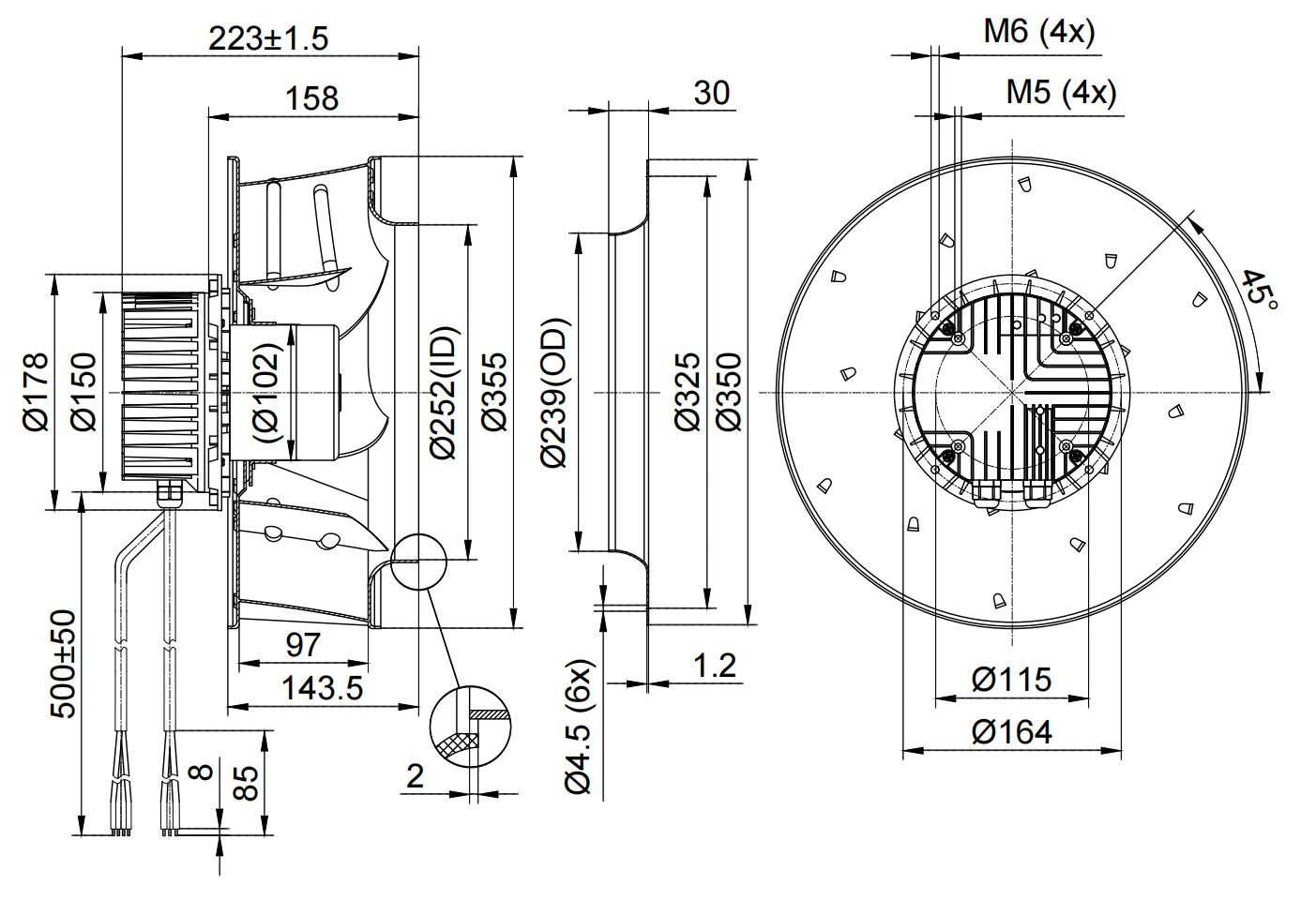

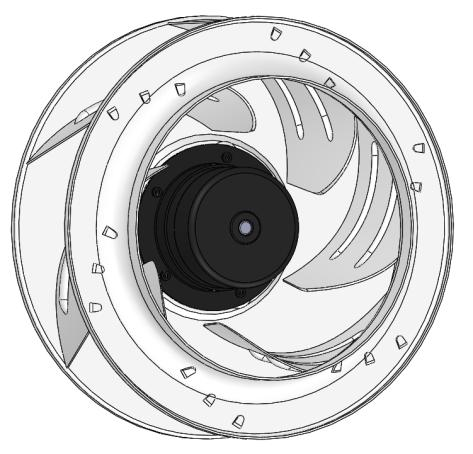

Product drawing

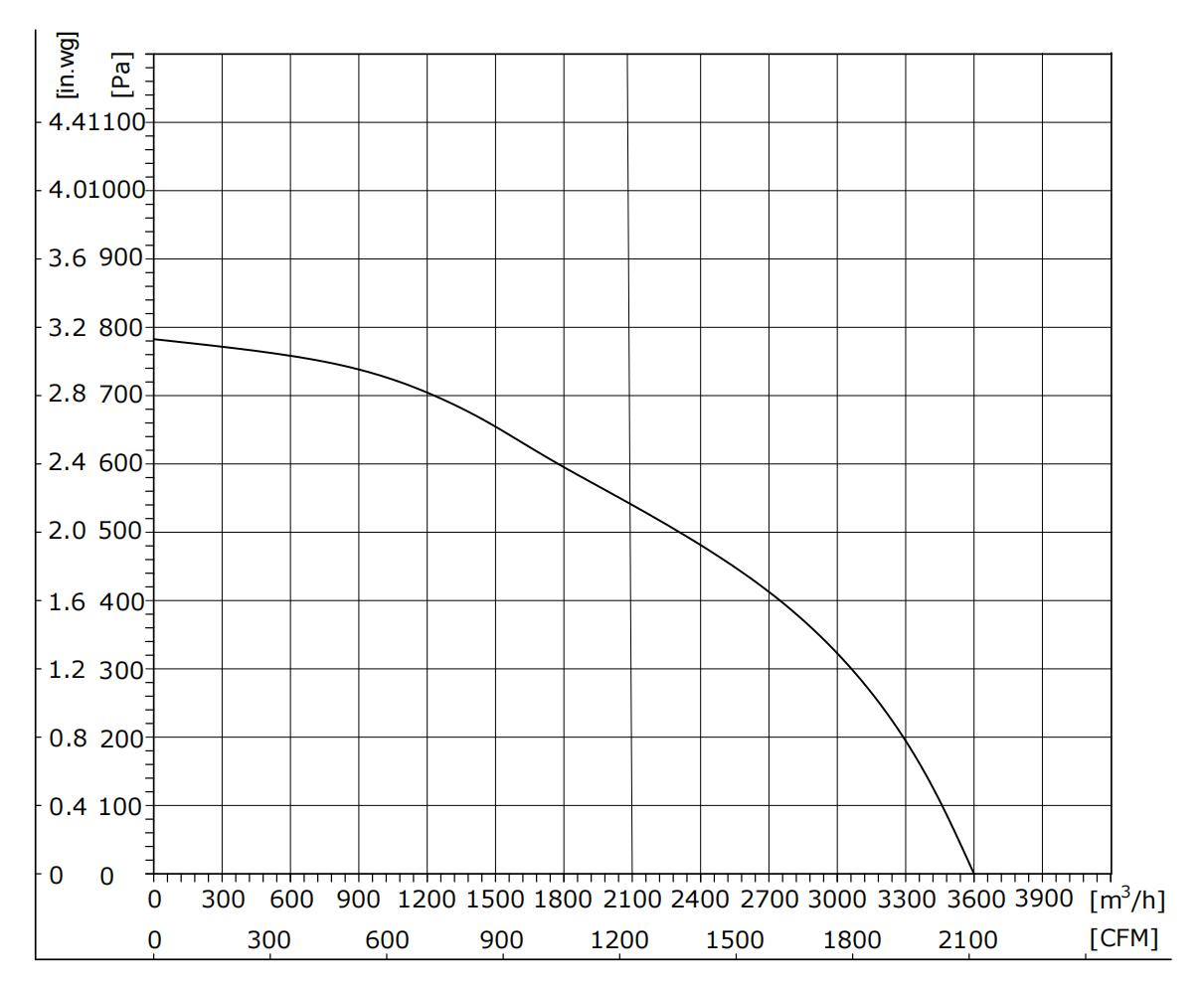

Aerodynamic Performance Charts
Test condition：
Ⅰ.The test data is obtained under the specified environment conditions and installation mode
Ⅱ.Input Voltage---Operating voltage
Ⅲ.Temperature---Room temperature 25℃
Safety Requirements
Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off
Ⅱ.Do not plug or unplug the fan lead plug when the fan is running
Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury
Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out
Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds
Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product
Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer
Advantages:
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
