FW3G200-24GC-91 Axial Fan, 24VDC, 200mm, 1205 m3/h

The FW3G200-24GC-91 axial fan from FANOVA is engineered to deliver whisper-quiet ventilation without compromising on performance, making it an ideal choice for noise-sensitive environments like medical facilities, laboratories, and office spaces. Operating at just 62 dB(A), this fan produces less sound than a typical conversation, ensuring a peaceful atmosphere while moving an impressive 1205 m3/h of air. Powered by a 24VDC brushless DC motor, this model offers exceptional energy efficiency with a maximum power consumption of only 60W, perfect for solar-powered or off-grid applications. The galvanized steel impeller provides superior industrial durability and corrosion resistance, suitable for demanding HVAC and ventilation systems. With a speed of 3000 RPM and a maximum static pressure of 250 Pa, it effectively overcomes resistance from filters and ductwork. The die-cast aluminum housing ensures robust construction and heat dissipation for long-term reliability. This fan operates within a voltage range of 16 to 28VDC and draws a current of 2.5A, making it compatible with standard battery systems. Its low power draw and silent operation make it a standout choice for eco-conscious projects. Backed by FANOVA's OEM/ODM expertise, this axial fan is built to meet rigorous quality standards, with bearings designed for extended service life. Whether used in ventilation cabinets, telecommunications equipment, or renewable energy systems, this fan combines quiet efficiency with durable steel construction.

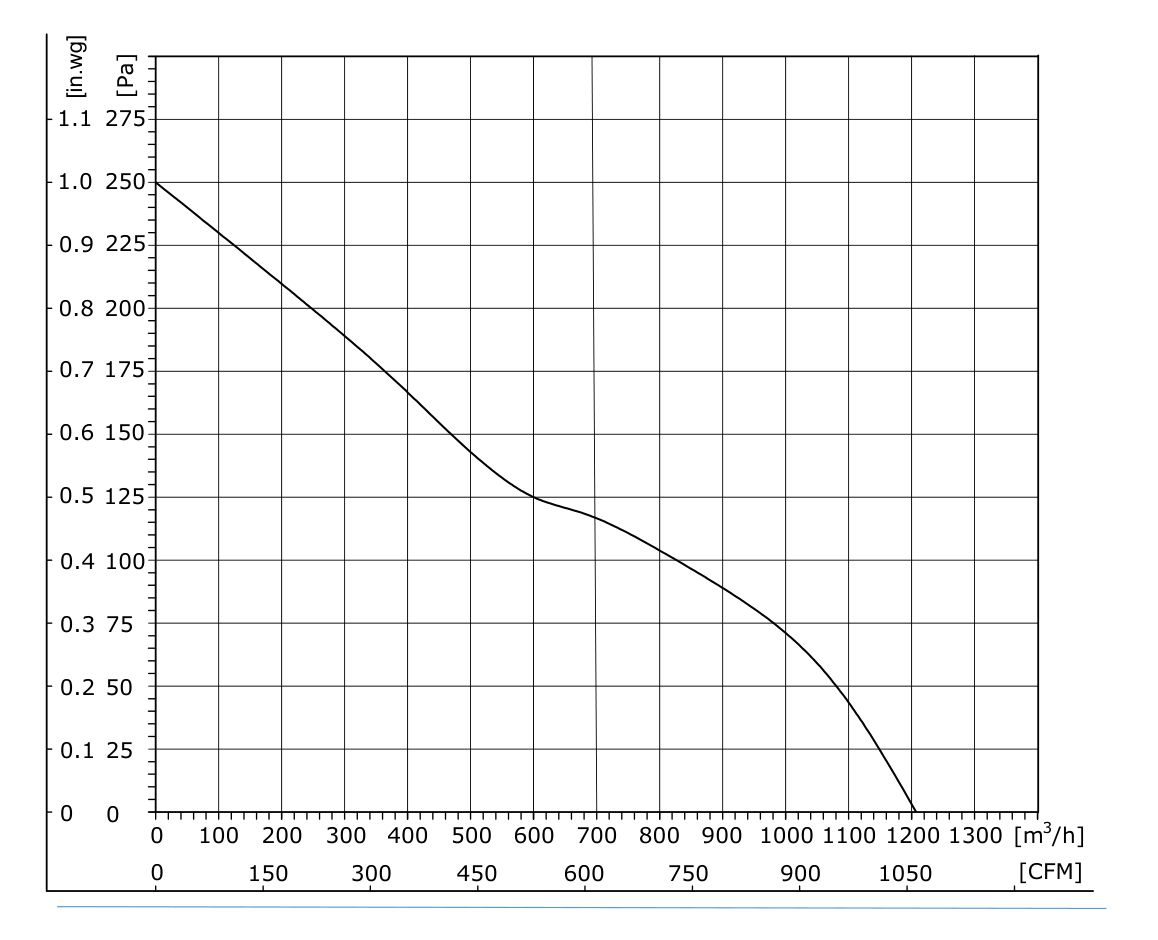

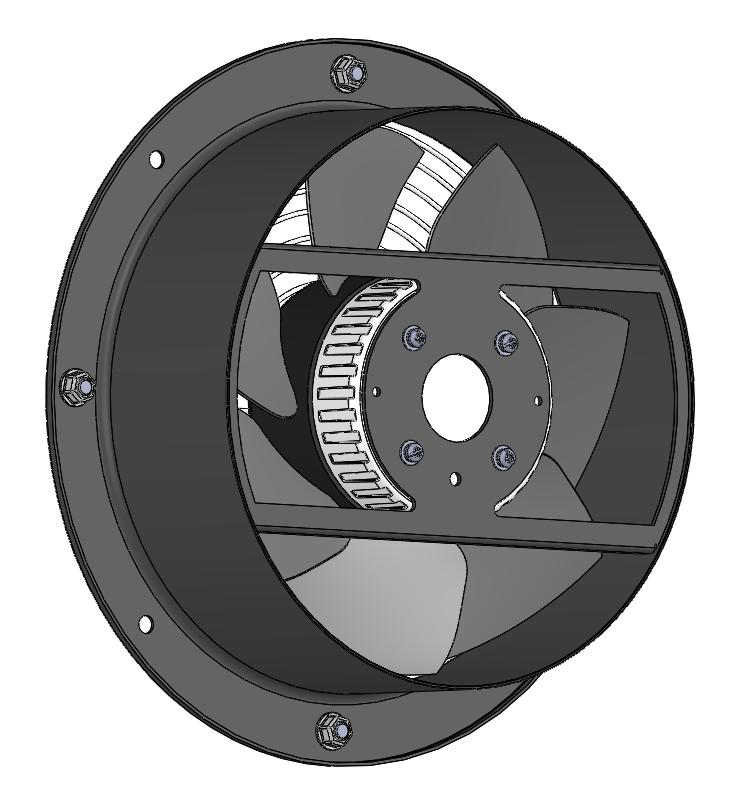

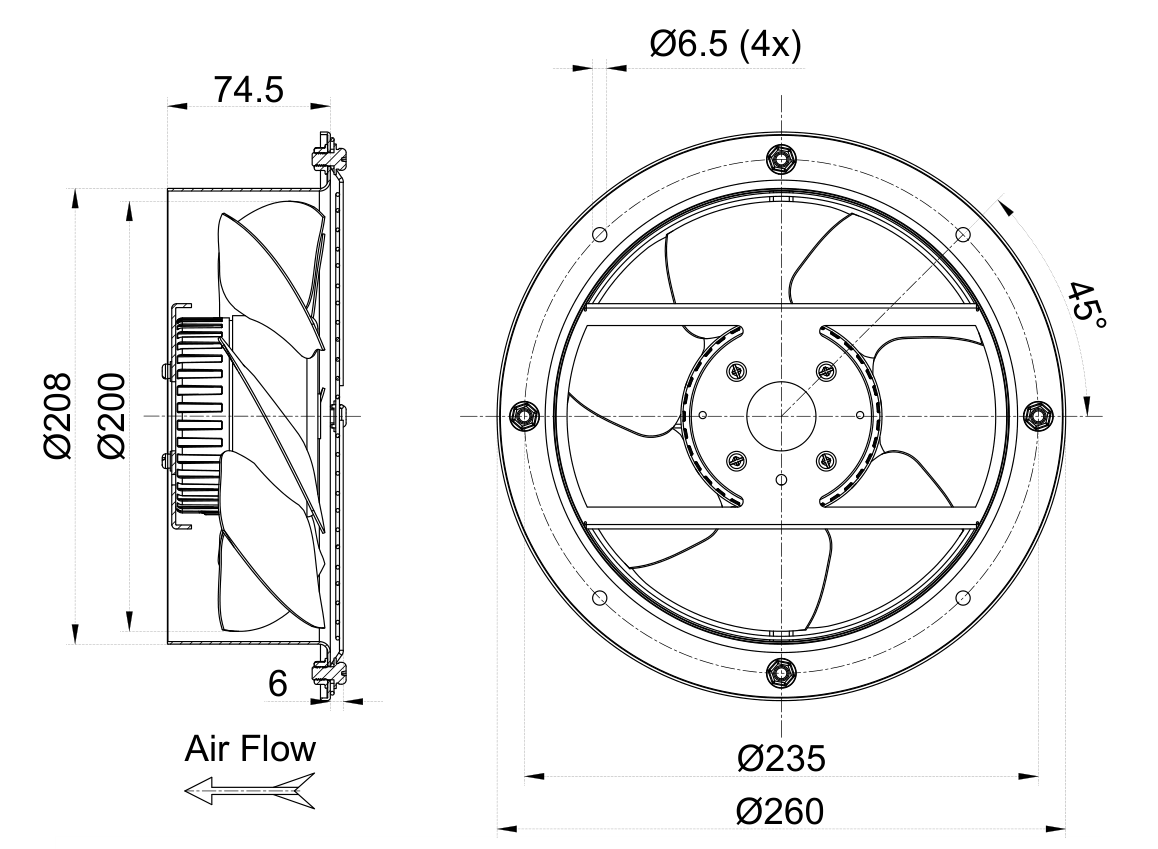

The FW3G200-24GC-91 is a high-performance axial fan designed for applications where low noise and low power consumption are critical. The impeller, constructed from galvanized steel sheet, features a carefully engineered blade profile that maximizes airflow while minimizing acoustic emissions. With a diameter of 200 mm, the impeller is driven by a 92 mm rotor motor, ensuring a compact yet powerful footprint. The motor technology is a brushless DC (BLDC) design, specifically the DC92 model, which offers high efficiency and long operational life compared to traditional AC motors. This fan operates at a nominal voltage of 24VDC, with a wide input range of 16 to 28VDC, allowing it to function reliably on fluctuating power supplies or battery banks. At full speed of 3000 RPM, it delivers a maximum airflow of 1205 m3/h and a maximum static pressure of 250 Pa, making it suitable for systems with moderate airflow resistance. The power consumption is capped at 60W, and the operating current is 2.5A, which underscores its energy-saving credentials. Noise emission is rated at a low 62 dB(A), positioning this fan as an ultra-quiet solution for indoor environments. The end caps and housing are made of die-cast aluminum, providing excellent structural integrity, thermal conductivity, and resistance to corrosion. The fan incorporates a speed control interface that supports PWM (pulse width modulation) or voltage-based regulation, enabling precise airflow adjustments to meet varying system demands. Electrical connection is via a 20AWG cable, which is suitable for low-voltage DC applications and ensures minimal power loss. The fan is equipped with high-quality ball bearings that are rated for extended service life, typically exceeding 50,000 hours at 40°C ambient temperature. Protection features include reverse polarity protection and locked rotor protection, safeguarding the motor from electrical faults. The insulation class is Class B, ensuring safe operation within specified temperature limits. The FW3G200-24GC-91 is manufactured in accordance with CE and RoHS certifications, adhering to international safety and environmental standards. Its combination of steel impeller robustness, aluminum housing durability, and BLDC motor efficiency makes it a versatile choice for HVAC units, medical equipment, electronic enclosures, and new energy systems. FANOVA's commitment to quality ensures each unit undergoes rigorous testing for airflow, noise, and endurance, guaranteeing consistent performance in the field.

DC Axial Fan
Type	FW3G200-24GC-91
Model	BLDCDC92

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

1. High Efficiency: The FW3G200-24GC-91 delivers 1205 m3/h at 250 Pa while drawing only 60W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 200mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

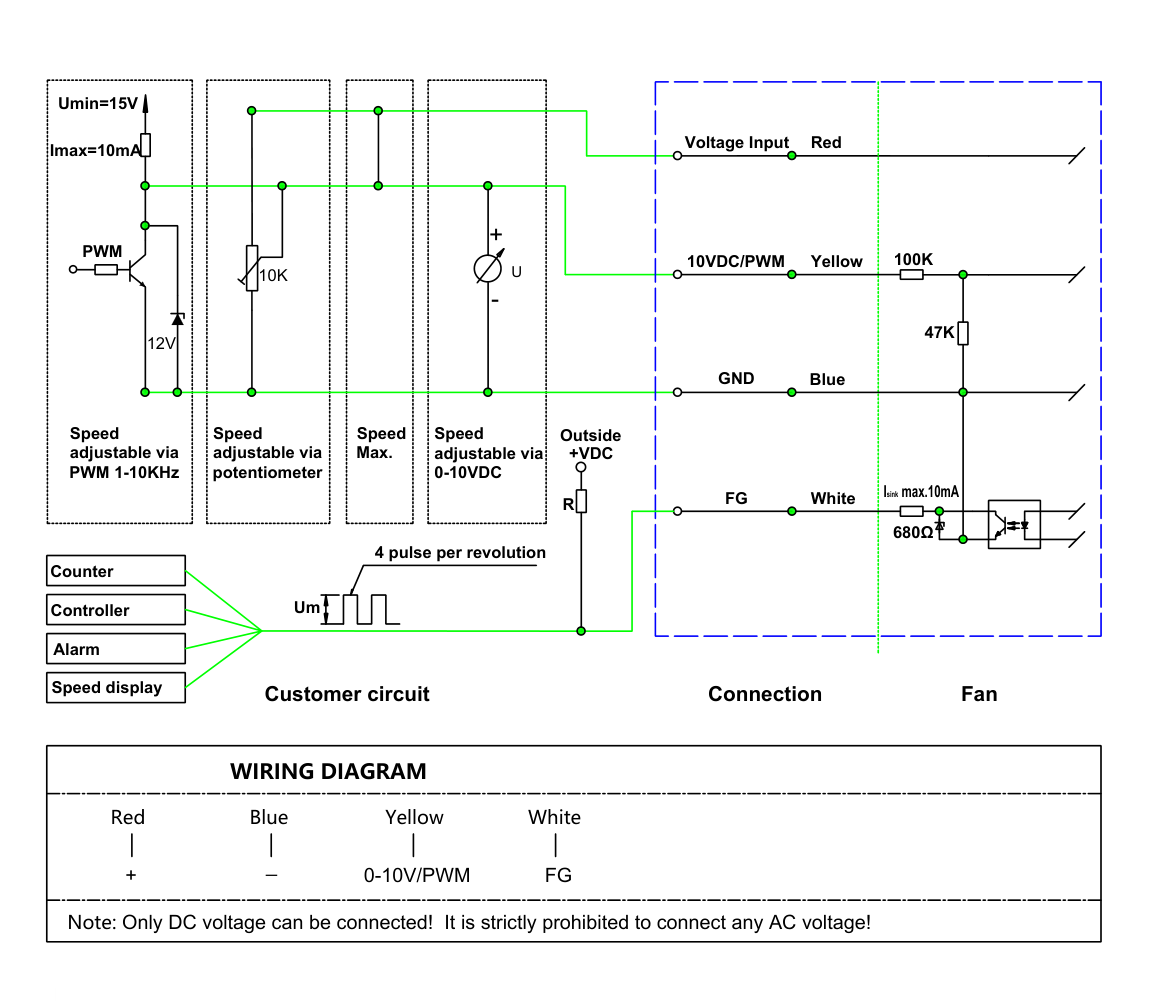

5. Easy Installation and Maintenance: Compact 200mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.

Q1:What kind of payments do you support?

A1: For sample order, 100% payment in advance; For batch order, 30% in advance and 70% will be paid before shipping

Q2.Will you provide samples?

A2: Sample is available and can be delivered within 10days

Q3:How can I choose a more suitable model?

A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure.

Q4:How can I place the order?

A4:  Usually quote you within 24 hours  after  we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q5:About transportation

A5: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

Q6:How long is the warranty period?

A6: We currently offer 3-year quality guarantee for our own products, and in response to current product problems, our company provides line support, and some customers have been able to improve their products.
