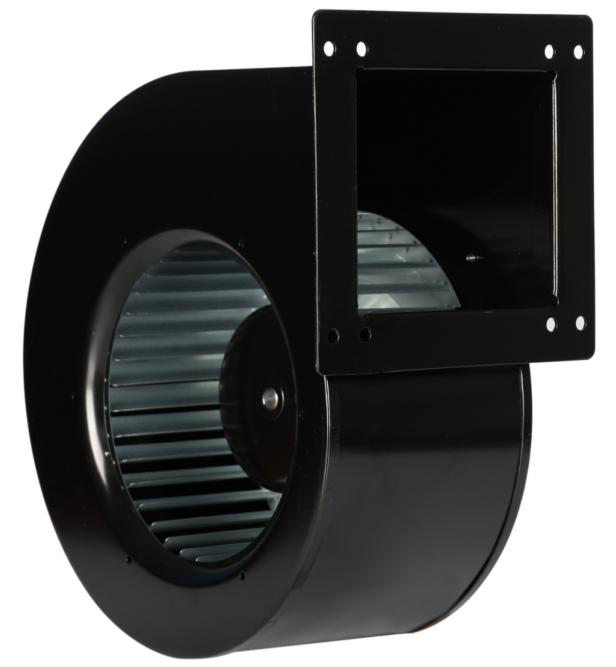

FS3G160-12GL-99 Single Inlet Centrifugal Blower, 12VDC, 160mm, 565.3 m3/h

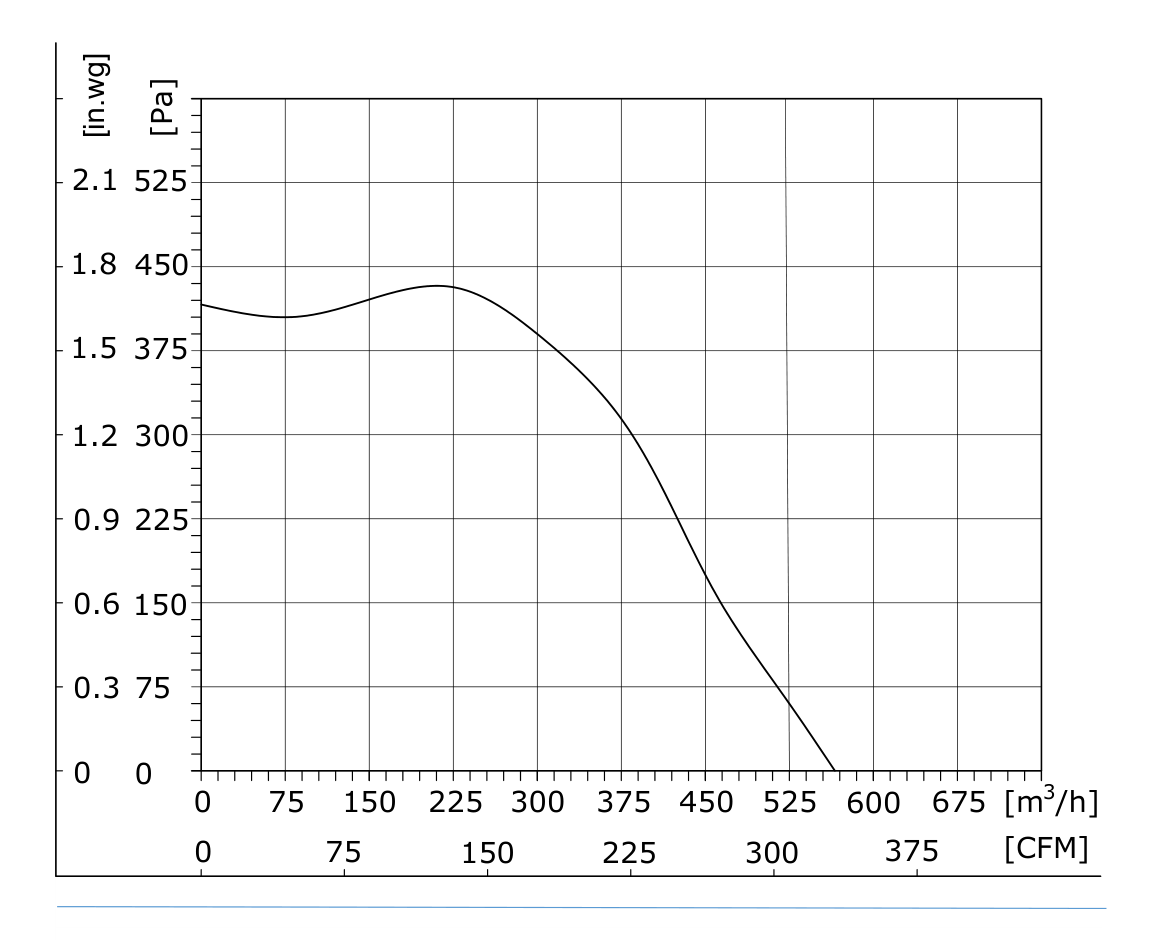

The FS3G160-12GL-99 is a high-efficiency single inlet centrifugal blower engineered for applications where power consumption and durability are critical. Its standout superpower is ultra-low power draw at just 96 W, delivering exceptional airflow without straining battery systems or energy budgets. This blower achieves a maximum airflow of 332.7 CFM (565.3 m3/h) and a static pressure of 1.66 in.wg (414 Pa), making it a robust choice for compact ventilation and cooling tasks. Powered by a 12VDC brushless DC motor with a 92mm rotor, it operates at 1600 RPM with a current draw of only 8.0 A, ensuring predictable performance. The galvanized steel sheet impeller, 160mm in diameter, provides industrial-grade strength, corrosion resistance, and long-term reliability in demanding environments. Built with a die-cast aluminum housing, this blower is lightweight yet sturdy, ideal for medical devices, laboratory equipment, and battery-powered portable systems. It offers speed control flexibility via PWM or voltage regulation, and features class B insulation plus thermal protection for safe operation. The 18AWG cable (220mm length) simplifies integration, while dual ball bearings deliver a lifespan exceeding 50,000 hours. Certified to CE and RoHS standards, the FS3G160-12GL-99 is a FANOVA OEM solution that balances energy efficiency with industrial toughness, perfect for HVAC, new energy, and clean-tech applications where every watt matters.

The FS3G160-12GL-99 centrifugal blower is a precision-engineered air-moving solution that addresses the need for low-power, high-durability performance in space-constrained systems. Its impeller is fabricated from galvanized steel sheet, a material chosen for its superior resistance to corrosion, mechanical wear, and thermal stress, making it suitable for continuous operation in harsh industrial or medical environments. The impeller features a backward-curved blade design with a diameter of 160mm, optimized to maximize aerodynamic efficiency, reduce turbulence, and achieve a peak airflow of 565.3 m3/h at free delivery, while maintaining a static pressure capability of 414 Pa for overcoming duct resistance or filter loads. At the core of this blower is a brushless DC motor (type BLDCDC92) with a rotor diameter of 92mm, designed for high torque density and low cogging. The 12VDC input (operating range 9V-13.2V) allows integration with standard low-voltage supplies, solar panels, or battery banks, while the motor's electronic commutation eliminates brush wear and EMI, enhancing reliability and lifecycle. Electrical ratings include a nominal current of 8.0A and power consumption of 96W at the rated speed of 1600 RPM, representing an energy-to-airflow ratio that outperforms many AC alternatives. Speed control is achieved via either a 0-10V analog signal or PWM input, enabling precise modulation from 10% to 100% of maximum RPM, which is ideal for variable airflow systems in HVAC, medical ventilators, or battery cooling units. The motor includes built-in thermal overload protection and is insulated to class B (130°C), safeguarding against locked-rotor or high-ambient conditions. Mechanically, the blower employs dual ball bearings rated for 50,000 hours L10 life at 40°C, ensuring maintenance-free operation across its service life. The housing is made of die-cast aluminum alloy, providing a rigid frame that minimizes vibration and noise, with an acoustic output of only 65 dB(A) at full speed—a level comparable to normal conversation, suitable for noise-sensitive settings like laboratories or offices. Electrical connection is via a 220mm long 18AWG cable with stripped and tinned leads, simplifying wiring in OEM assemblies. The unit weighs less than 3kg and can be mounted in any orientation, offering design flexibility. Certification includes CE and RoHS compliance, and each unit undergoes rigorous testing for airflow, pressure, and dielectric strength (500VDC for 1 minute). With its galvanized steel impeller and low-power footprint, the FS3G160-12GL-99 is an ideal choice for applications such as medical equipment cooling, telecom enclosure ventilation, fuel cell air supply, and portable air purification, where FANOVA's engineering ensures both performance and longevity.

DC Single Inlet Centrifugal Blower
Type	FS3G160-12GL-99
Model	BLDCDC92

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

1. High Efficiency: The FS3G160-12GL-99 delivers 565.3 m3/h at 414 Pa while drawing only 96W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 160mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

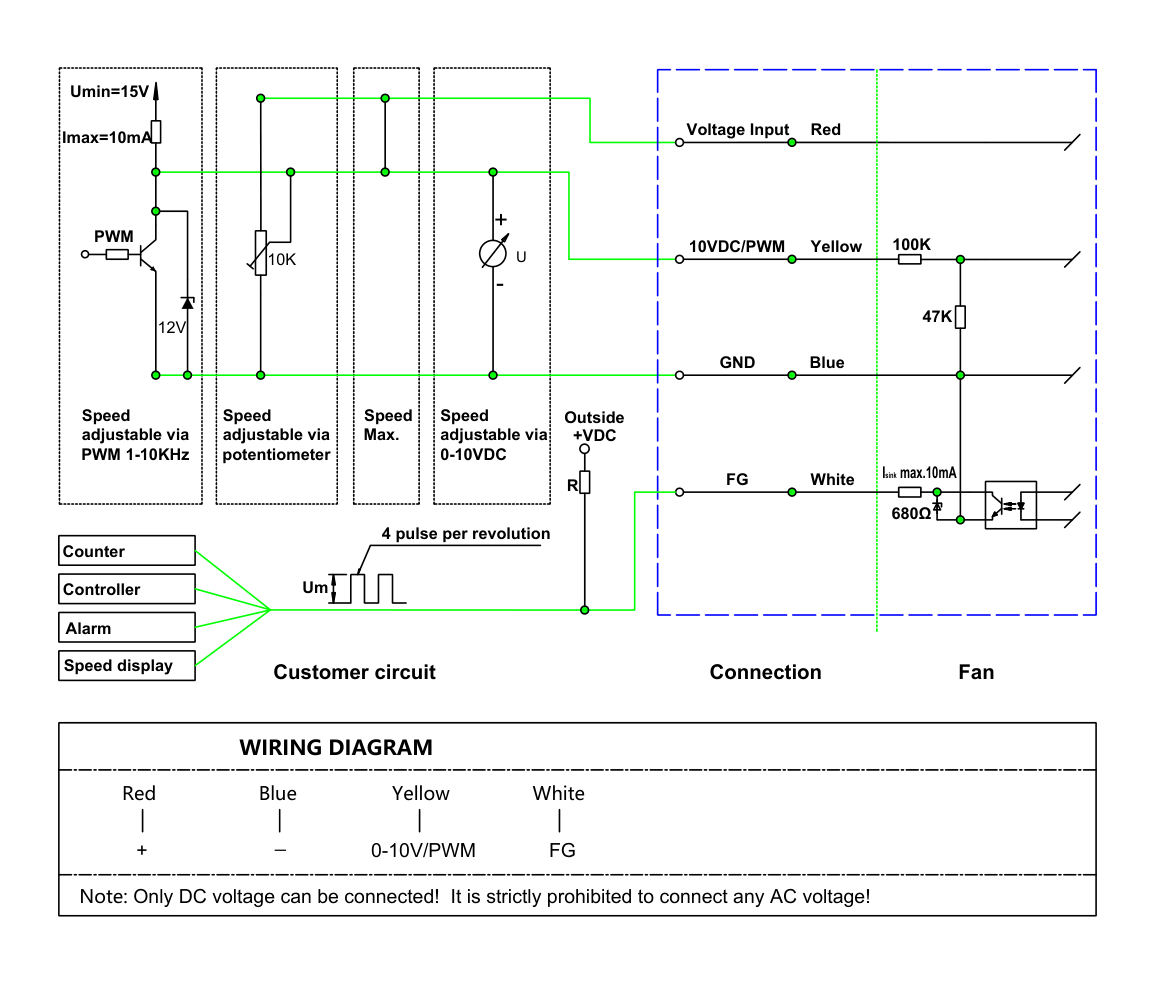

5. Easy Installation and Maintenance: Compact 160mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
