EN
FW3G350-2APL-60
| Nominal Voltage | VAC | 230 |
| Current draw | A | 3.3±10% |
| Speed(RPM) | min-1 | 2650±5% |
| Power consumption | W | 750±10% |
| Max. Air Flow | CFM / m3 /H | 2966.04/5040 |
| Max. Static Pressure | In.wg /Pa | 1.82/455 |
50pcs

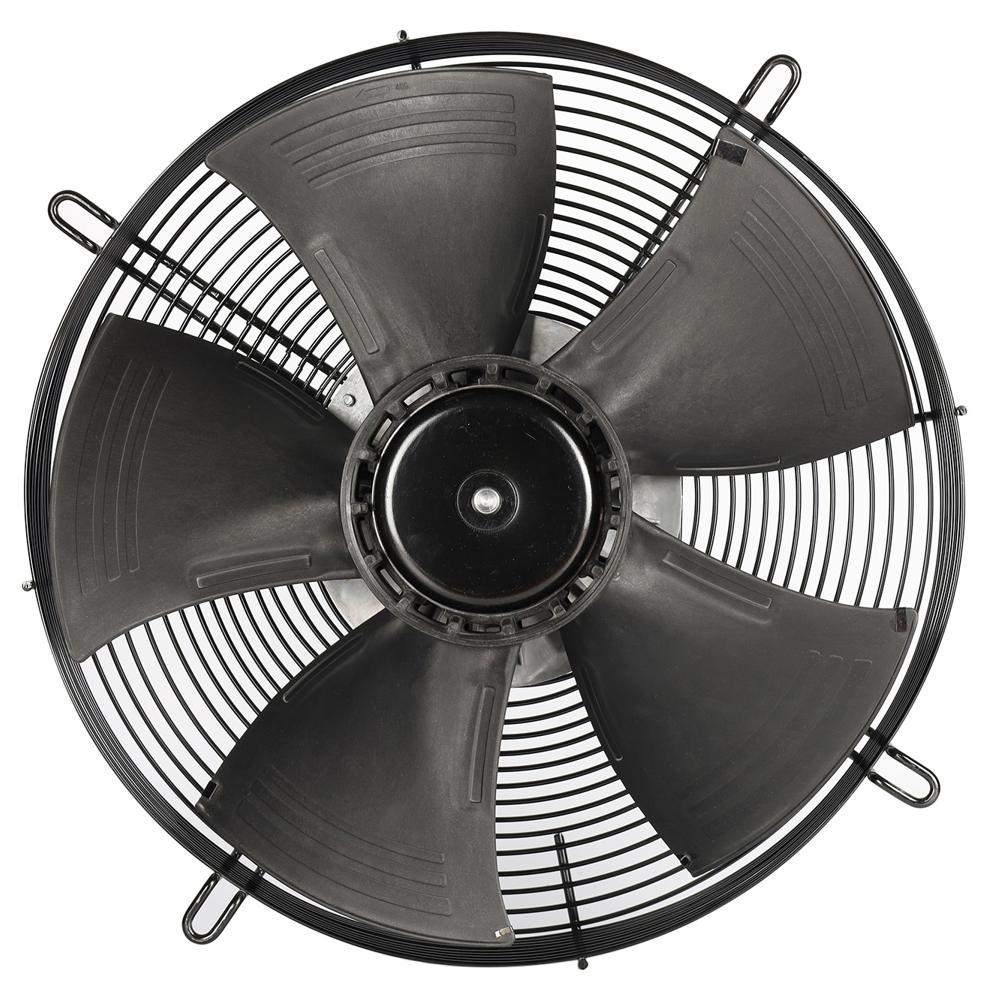

The FW3G350-2APL-60 is a high-performance axial fan engineered to deliver exceptional airflow in a single, compact unit, eliminating the need for multiple smaller fans in demanding ventilation applications. With a maximum airflow of 5040 m³/h and a robust power rating of 750 W, this model is a powerhouse for industrial HVAC systems, cleanrooms, and high-capacity air movement tasks. It operates on a versatile 230VAC power supply (range 184–270V), making it a true plug-and-play solution for replacing older AC fans without rewiring. The fan features a 350mm impeller made from glass-fiber reinforced polypropylene, offering excellent chemical resistance and lightweight durability while maintaining structural integrity at high speeds. The integrated BLDCEC102 motor provides EC (electronically commutated) technology with variable speed control, ensuring energy efficiency and precise airflow regulation. Built with a die-cast aluminum housing and rated for continuous duty, this fan delivers a static pressure of up to 455 Pa, suitable for moderate duct resistance and filter loads. It includes a 18AWG cable (162mm) for straightforward electrical connections, and is protected with standard insulation and IP ratings for industrial environments. Certified to CE and RoHS standards, the FW3G350-2APL-60 is an ideal choice for OEMs seeking reliable, high-volume axial fans from FANOVA for ventilation, cooling, and air handling systems.
The FW3G350-2APL-60 axial fan represents a fusion of high-capacity airflow and advanced EC motor technology, purpose-built for original equipment manufacturers who demand performance and efficiency. At the heart of this fan is a 350mm impeller constructed from polypropylene reinforced with glass fiber, a material choice that delivers exceptional resistance to chemical corrosion, moisture, and impact, while remaining lightweight to reduce mechanical stress on the motor and mounting structure. The impeller features precisely engineered blades with optimized aerodynamics to maximize air movement with minimal turbulence, achieving a peak airflow of 5040 m³/h at 2650 RPM. The motor, designated BLDCEC102, is a brushless DC motor with an integrated electronic control unit, operating on 230VAC (184–270V range) and drawing 3.3A at full load, consuming up to 750W. This EC technology enables variable speed control via an external 0-10VDC signal or PWM input, allowing precise modulation of airflow to match system demands, which significantly reduces energy consumption compared to traditional AC fans. The motor features a rotor diameter of 102mm and uses high-quality ball bearings rated for a lifespan exceeding 50,000 hours at 40°C ambient, ensuring long-term reliability in continuous operation. The fan's endcaps and housing are manufactured from die-cast aluminum, providing excellent heat dissipation and structural rigidity, with a design that complies with IP55 protection against dust and water jets, suitable for industrial environments. Electrically, the fan is supplied with an 18AWG cable of 162mm length, color-coded for easy connection to power and control signals, and includes thermal overload protection and locked-rotor protection to prevent damage. The insulation class is Class B, with dielectric strength tested to 1500VAC for safety. The fan is certified to CE, RoHS, and REACH, and follows ISO 9001 quality standards. The FW3G350-2APL-60 is particularly suited for high-density air movement in HVAC systems, ventilation of industrial equipment, and agricultural ventilation, offering a single-fan solution that reduces installation complexity and maintenance costs.
| AC Axial Fan |  |
|
| Type | FW3G350-2APL-60 | |
| Model | BLDCEC102 | |
| Nominal Voltage | VAC | 230 |
| Voltage range | VAC | 184~270 |
| Current draw | A | 3.3±10% |
| Speed(RPM) | min-1 | 2650±5% |
| Power consumption | W | 750±10% |
| Sound Pressure Level | dB(A） | 72.3±5% |
| Max. Air Flow | CFM / m3 /H | 2966.04/5040 |
| Max. Static Pressure | In.wg /Pa | 1.82/455 |
| Insulation class | ~ | Class B |
| Degree of protection | ~ | IP44 |
| Control Input | ~ | 0~10VDC / PWM |
| Signal Output | ~ | FG (Tach output ) |
Remarks：

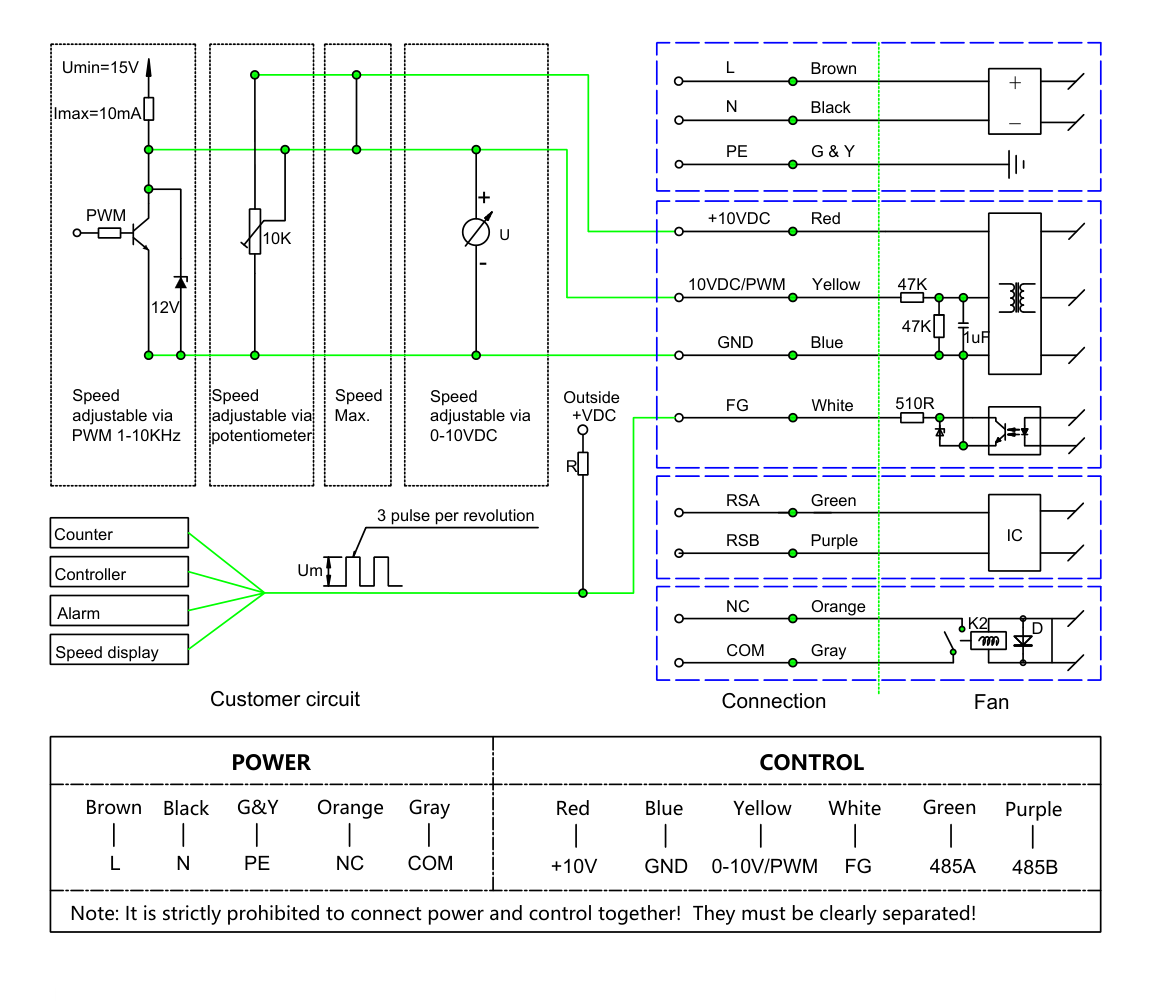

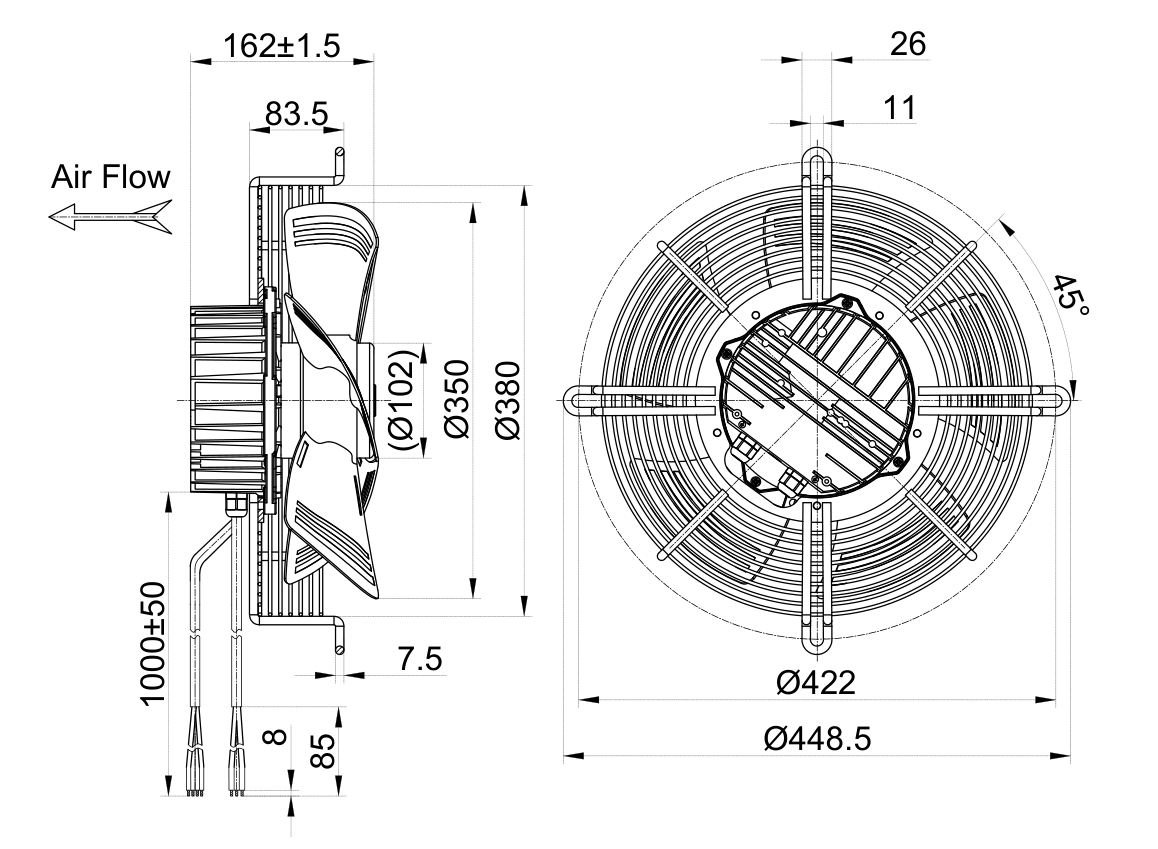

Ⅰ. Standard cable length Refer to the figure below. The length of cable can be customized
Ⅱ. Conventional mode is 0-10V/PWM control, can optionally replace the communication protocol, detailed communication protocol, please contact technical personnel
Test condition：
Ⅰ.The test data is obtained under the specified environment conditions and installation mode
Ⅱ.Input Voltage---Operating voltage
Ⅲ.Temperature---Room temperature 25℃
Ⅴ.Humidity---65%RH
Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off
Ⅱ.Do not plug or unplug the fan lead plug when the fan is running
Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury
Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out
Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds
Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product
Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer
Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading
1. High Efficiency: The FW3G350-2APL-60 delivers 5040 m3/h at 455 Pa while drawing only 750W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.
2. Industrial-Grade Impeller: The 350mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.
3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.
5. Easy Installation and Maintenance: Compact 350mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
