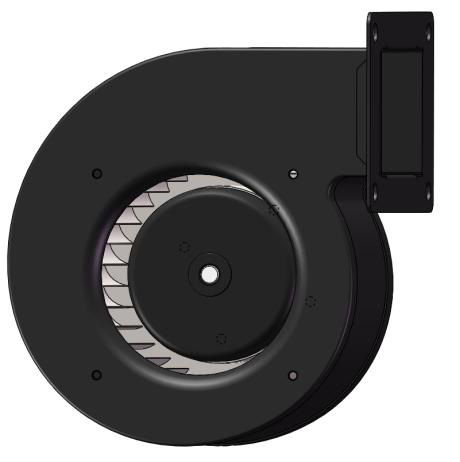

FS3G160-2AGL-90 Single Inlet Centrifugal Blower, 230VAC, 160mm, 705.5 m3/h

Upgrade your ventilation system to the FS3G160-2AGL-90, a versatile 230VAC EC single inlet centrifugal blower designed for seamless retrofitting of outdated AC-powered units. Its plug-and-play design eliminates the need for external transformers or complex wiring, making installation a breeze for maintenance teams and OEM integrators alike. At the heart of this blower is a robust galvanized steel impeller, chosen for its industrial-grade durability, corrosion resistance, and ability to withstand harsh operating conditions. Delivering a maximum airflow of 705.5 m3/h and a static pressure of 642 Pa, it effortlessly powers through long duct runs, high-resistance filters, and multiple outlet branches. The integrated BLDCEC92 motor achieves an energy efficiency that slashes operational costs compared to traditional shaded-pole or PSC motors. With a wide voltage tolerance of 184 to 270VAC, this unit ensures stable performance even in fluctuating grid conditions. Operating at a quiet 71 dB(A), it suits noise-sensitive environments like offices, labs, and commercial kitchens. The die-cast aluminum housing provides excellent heat dissipation and structural integrity, while the motor features thermal protection and Class B insulation for reliable, long-life service. Its 20AWG, 220mm cable and pre-wired connector simplify electrical hookup, reducing assembly time on your production line. Certified to CE and RoHS standards, this blower is ideal for HVAC air handling units, heat recovery ventilators, clean benches, and industrial cooling cabinets. Choose FANOVA's FS3G160-2AGL-90 to modernize your equipment with EC motor efficiency and uncompromising steel-core reliability.

The FS3G160-2AGL-90 represents FANOVA's advanced EC (electronically commutated) centrifugal blower platform, purpose-engineered for the demanding 230VAC market segment that seeks to replace legacy AC induction motor blowers with high-efficiency, controllable alternatives. The impeller is a forward-curved, multi-blade design fabricated from 0.8mm galvanized steel sheet, providing superior resistance to corrosion, moisture, and abrasive particulates commonly found in industrial and commercial air streams. The 160mm diameter impeller is dynamically balanced to G2.5 grade, ensuring vibration-free rotation at the rated speed of 2050 RPM, which in turn maximizes bearing life and minimizes acoustic noise generation. The housing and endcaps are precision die-cast from aluminum alloy, offering a lightweight yet rigid structure that excels in thermal conductivity, effectively drawing heat away from the motor core and extending the lifespan of internal electronics. The integrated BLDCEC92 motor is a brushless DC (BLDC) design driven by an internal sensorless vector controller, delivering a nominal power output of 170W with a maximum airflow of 705.5 m3/h and a maximum static pressure of 642 Pa. Unlike conventional AC motors, this EC motor maintains high efficiency across its entire speed range, offering typical energy savings of 30-50% over equivalent PSC designs. Speed control is achieved via a 0-10VDC analog input signal or a PWM (pulse width modulation) input, allowing the blower to be precisely matched to system demand, whether for constant flow, constant pressure, or temperature-based modulation. The motor accepts a wide supply voltage of 184-270VAC at 50/60Hz, making it globally compliant without transformer adjustments; nominal current draw is 1.15A. Electrical protection includes built-in reverse polarity, over-current, over-temperature, and locked-rotor safeguards, while the motor winding is insulated to Class B standards. The unit is rated for operation in ambient temperatures from -20°C to +60°C, with an IP44 protection rating for the motor housing, suitable for indoor installation in clean or mildly dusty environments. The blower is equipped with two ball bearings, each rated for a service life of 40,000 hours at 60°C ambient, ensuring years of maintenance-free operation. The electrical interface comprises a 220mm long, 20AWG cable with a standard 6-pin connector, providing segregated leads for AC line, neutral, tach output, and control signal, simplifying panel wiring and enabling real-time speed monitoring. Extensive testing assures compliance with CE, RoHS, and REACH directives, and every unit undergoes a 100% run-in test at the factory to verify performance and noise levels. This blower is optimally suited for air handling units, fan coil units, heat recovery ventilators, cleanroom equipment, and commercial range hoods where durability, energy efficiency, and silent operation are paramount, reinforcing FANOVA's commitment to providing OEM customers with superior, long-lasting forced-air solutions.

AC Single Inlet Centrifugal Blower
Type	FS3G160-2AGL-90
Model	BLDCEC92

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

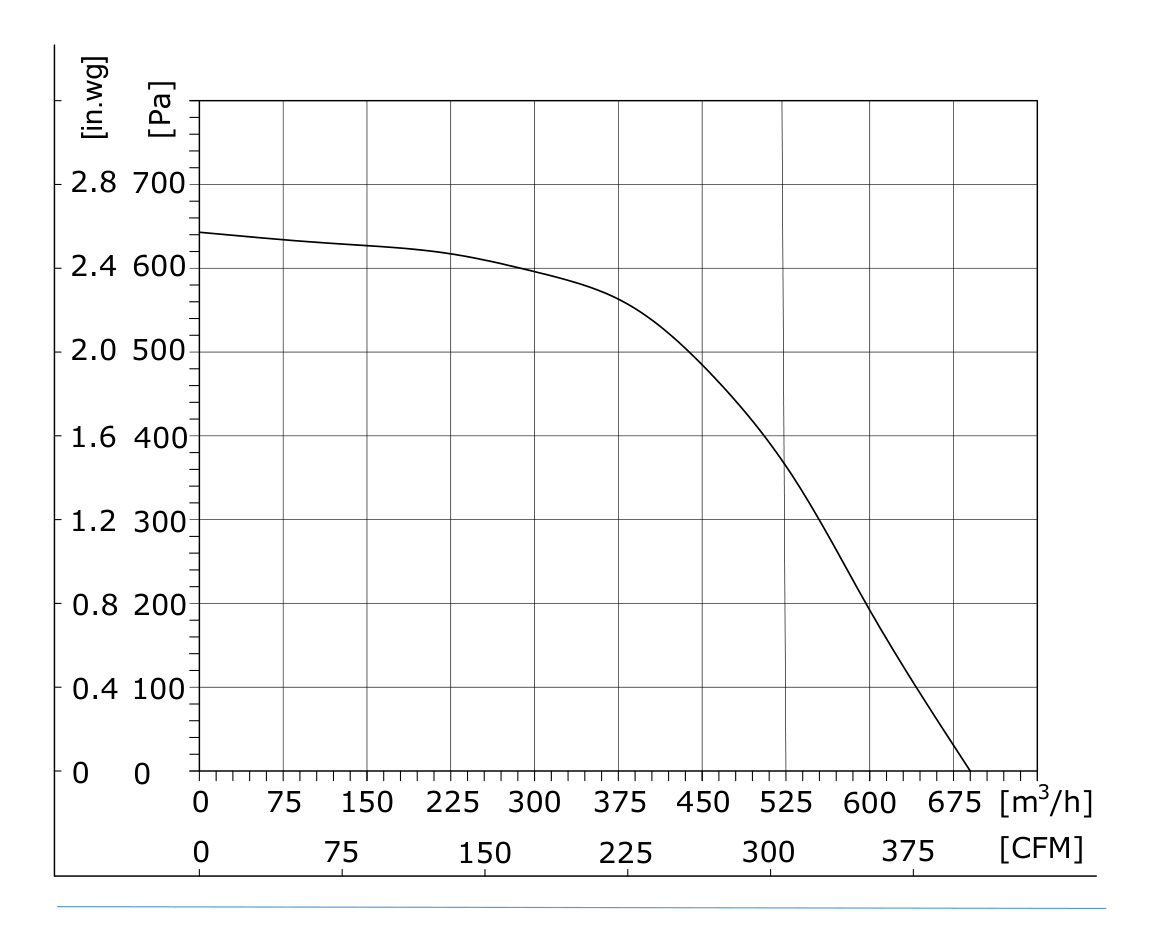

1. High Efficiency: The FS3G160-2AGL-90 delivers 705.5 m3/h at 642 Pa while drawing only 170W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 160mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

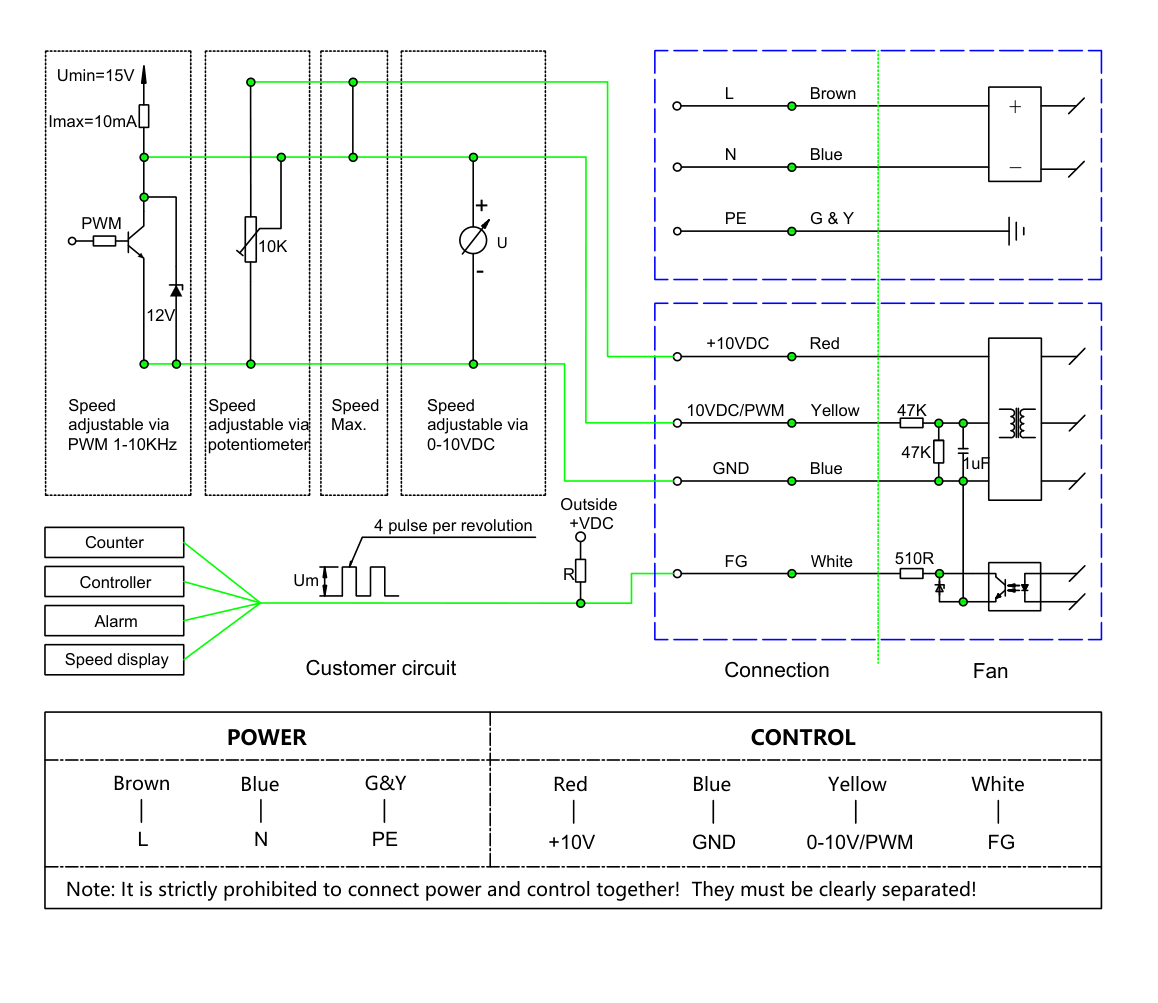

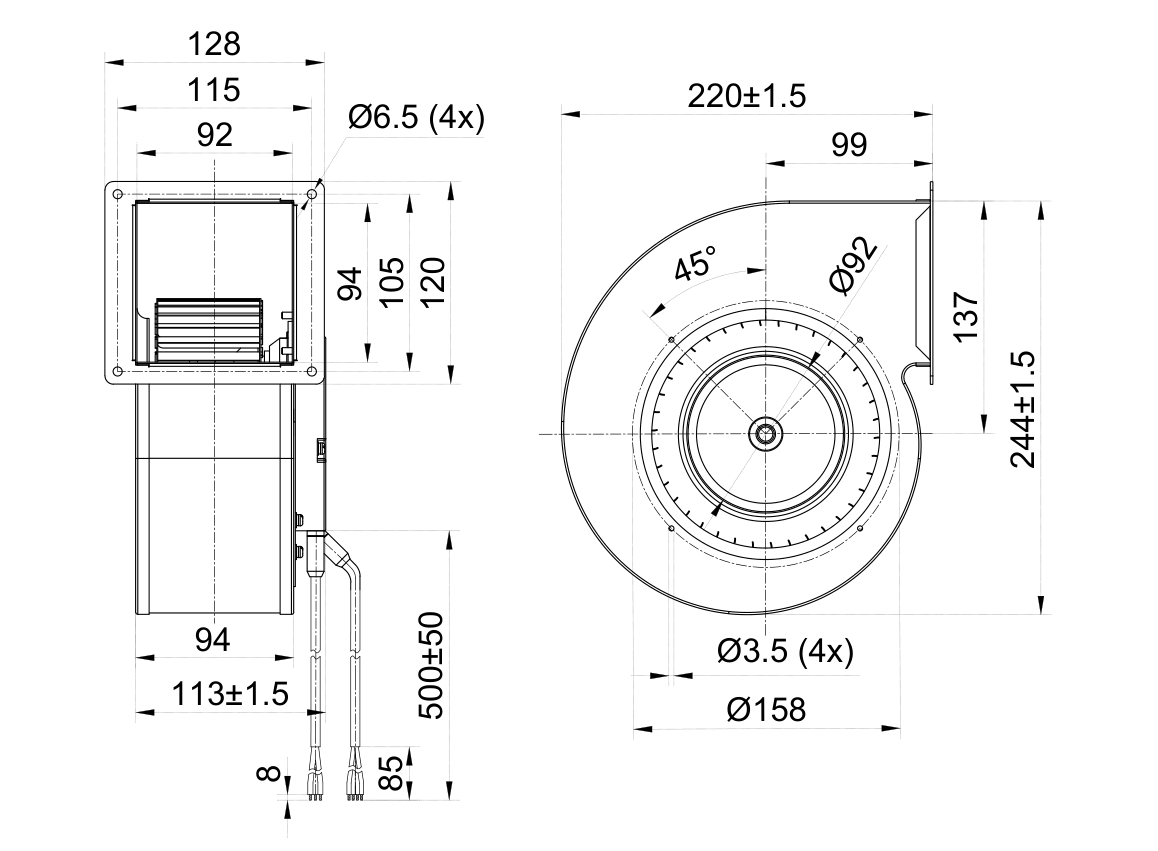

5. Easy Installation and Maintenance: Compact 160mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.

Q1:What kind of payments do you support?

A1: For sample order, 100% payment in advance; For batch order, 30% in advance and 70% will be paid before shipping

Q2.Will you provide samples?

A2: Sample is available and can be delivered within 10days

Q3:How can I choose a more suitable model?

A3: We need the information like fan type, quantity, size, material, voltage, air flow and static pressure.

Q4:How can I place the order?

A4:  Usually quote you within 24 hours  after  we get your inquiry. First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q5:About transportation

A5: All available shipping ways could be applied, express shipping, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.

Q6:How long is the warranty period?

A6: We currently offer 3-year quality guarantee for our own products, and in response to current product problems, our company provides line support, and some customers have been able to improve their products.
