FW3G500-2AGC-30L
| Nominal Voltage | VAC | 230 |
| Current draw | A | 3.9±10% |
| Speed(RPM) | min-1 | 1750±5% |
| Power consumption | W | 900±10% |
| Max. Air Flow | CFM / m3 /H | 6090.98/10350 |
| Max. Static Pressure | In.wg /Pa | 1.76/440 |
50pcs

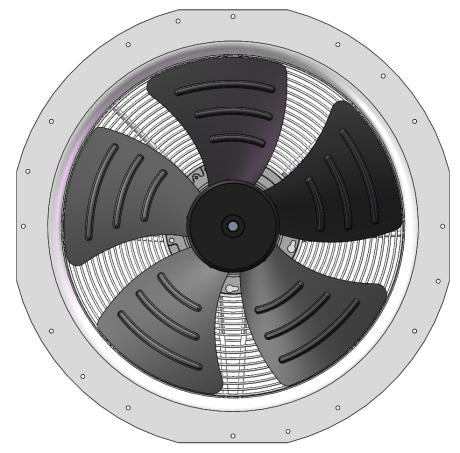

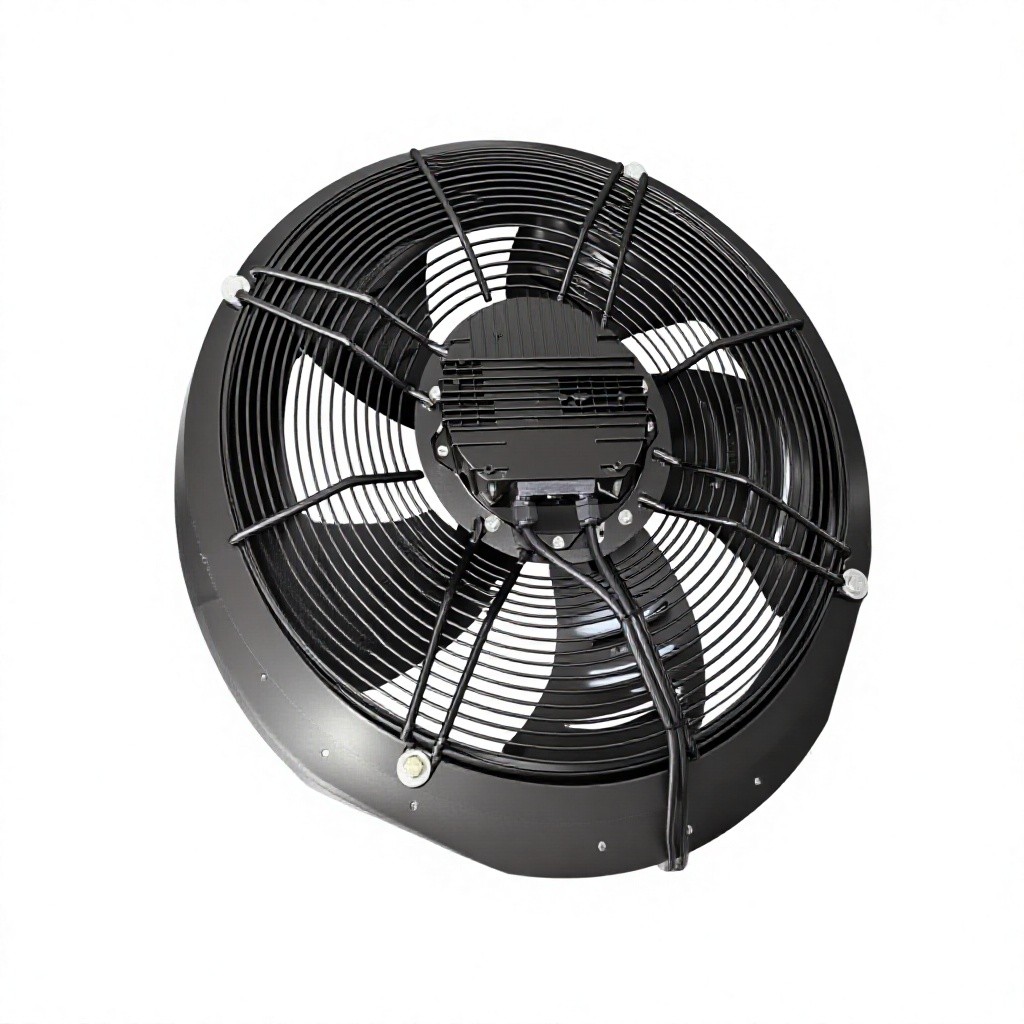

The FW3G500-2AGC-30L is a heavyweight axial fan engineered to replace multiple smaller units with a single, high-capacity airflow source, delivering up to 10,350 m3/h. This 500 mm cold-rolled steel impeller fan operates at a modest 1750 RPM, proving that massive air movement does not require excessive speed or noise. Powered by a 230VAC EC motor (BLDCEC138) with a wide input range of 184–270V, it offers plug-and-play compatibility for existing AC installations while delivering the energy savings of brushless DC technology. With a robust 900 W power rating and a current draw of 3.9 A, this fan is built for heavy-duty industrial ventilation, HVAC systems, and new energy applications. The die-cast aluminum housing and cold-rolled steel impeller ensure exceptional durability and resistance to harsh environments, making it a long-term investment. Integrated speed control allows for precise air volume modulation, optimizing energy use when full capacity is not required. Certified for industrial reliability, this fan is ideal for high-demand settings such as server rooms, agricultural ventilation, and factory exhaust systems. Choose FANOVA's FW3G500-2AGC-30L to streamline your airflow solution with one powerful, efficient unit.
The FW3G500-2AGC-30L is a 500 mm axial fan that combines a cold-rolled steel plate impeller with a die-cast aluminum endcap and housing, delivering a maximum airflow of 10,350 m3/h at 1750 RPM. This model is driven by a BLDCEC138 motor, a brushless DC electronically commutated motor that operates directly from a 230VAC supply (184–270V range), eliminating the need for a separate transformer or converter. The motor's advanced EC technology ensures high efficiency and long service life, with a power consumption of 900 W and a current draw of 3.9 A at full speed. The fan's speed control interface supports 0-10V DC or PWM signals, allowing seamless integration with building management systems for variable airflow management and energy savings. Electrical protection includes overload and thermal shutdown safeguards, while the motor is insulated to Class F standards, ensuring safe operation under elevated temperatures. The impeller, with its cold-rolled steel construction, offers superior mechanical strength and resistance to abrasion and corrosion, suitable for continuous operation in dusty or industrial environments. The fan is equipped with sealed ball bearings rated for 50,000 hours at 40°C, providing reliable performance over an extended lifespan. The electrical interface includes a 1000 mm cable with 18AWG conductors, pre-terminated for easy installation and connection. This model is designed to meet IP54 protection for the motor, guarding against dust and water splashes, though the overall unit is suitable for indoor and sheltered outdoor applications. Quality assurance follows ISO 9001 standards, with each fan undergoing rigorous testing for airflow, noise (79 dB(A) maximum), and vibration. The FW3G500-2AGC-30L is a versatile axial fan solution for high-volume ventilation, heat exchange, and process cooling, delivering industrial-grade performance with energy-conscious operation.
| AC Axial Fan |  |
|
| Type | FW3G500-2AGC-30L | |
| Model | BLDCEC138 | |
| Nominal Voltage | VAC | 230 |
| Voltage range | VAC | 184~270 |
| Current draw | A | 3.9±10% |
| Speed(RPM) | min-1 | 1750±5% |
| Power consumption | W | 900±10% |
| Sound Pressure Level | dB(A） | 79±5% |
| Max. Air Flow | CFM / m3 /H | 6090.98/10350 |

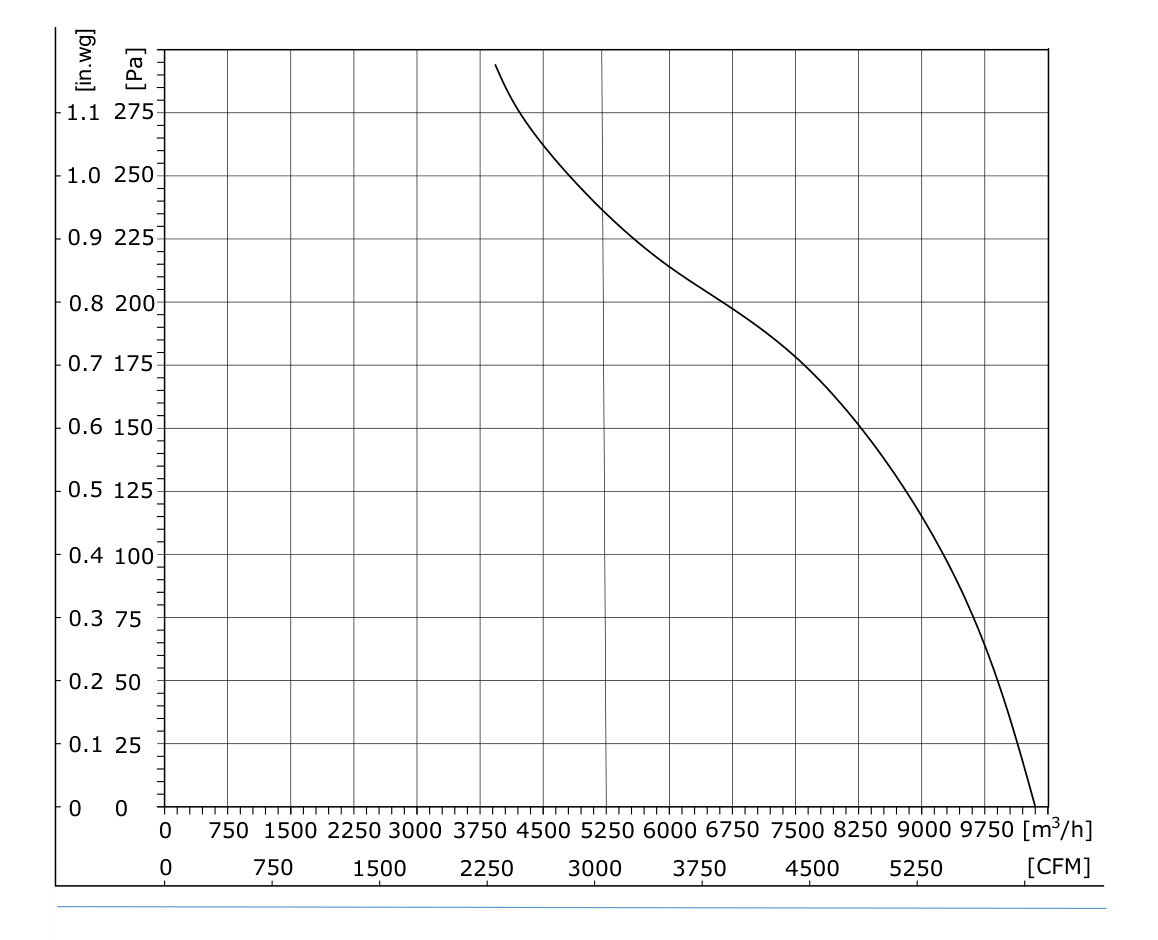

| Max. Static Pressure | In.wg /Pa | 1.76/440 |
| Insulation class | ~ | Class B |
| Degree of protection | ~ | IP44 |

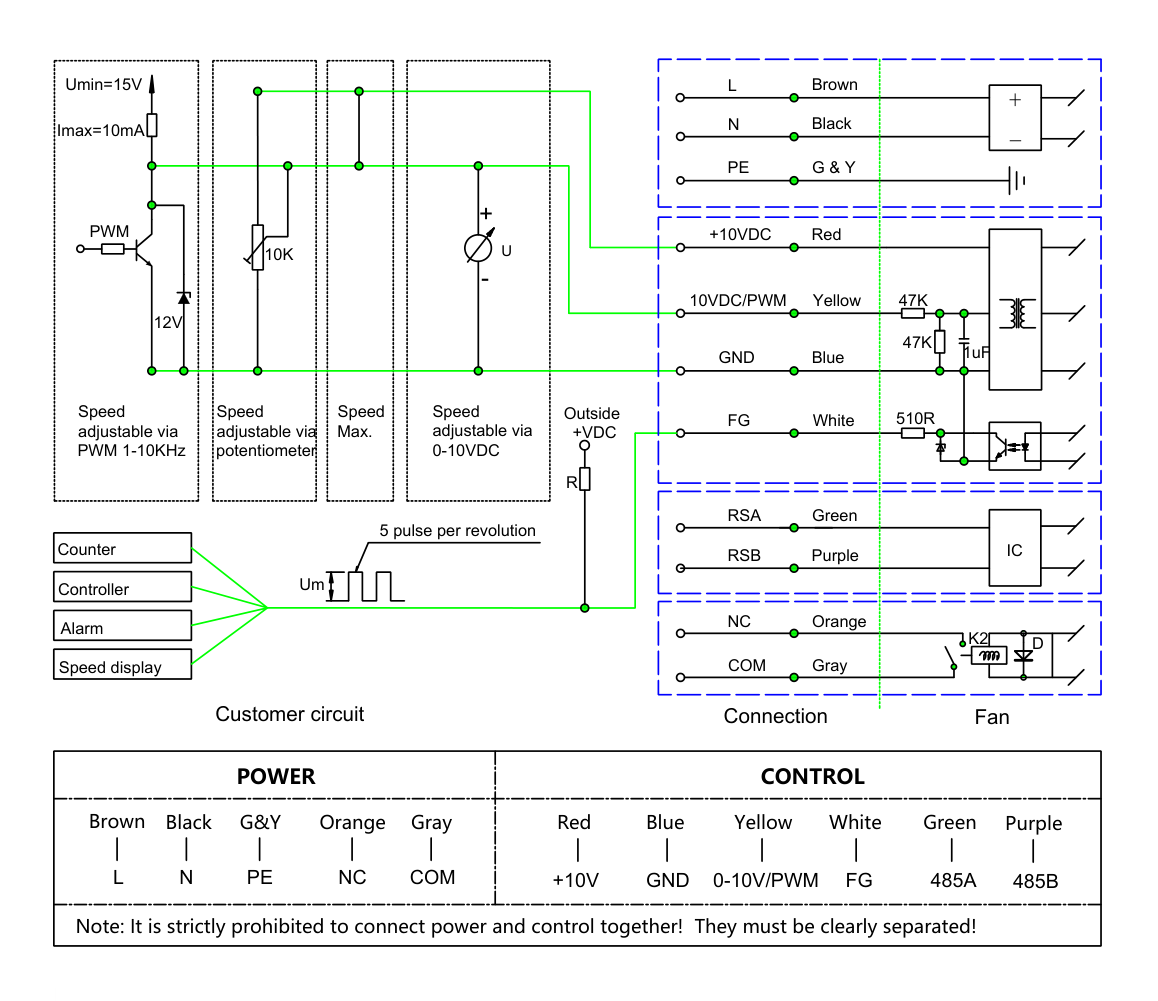

| Control Input | ~ | 0~10VDC / PWM |
| Signal Output | ~ | FG (Tach output ) |
Remarks：

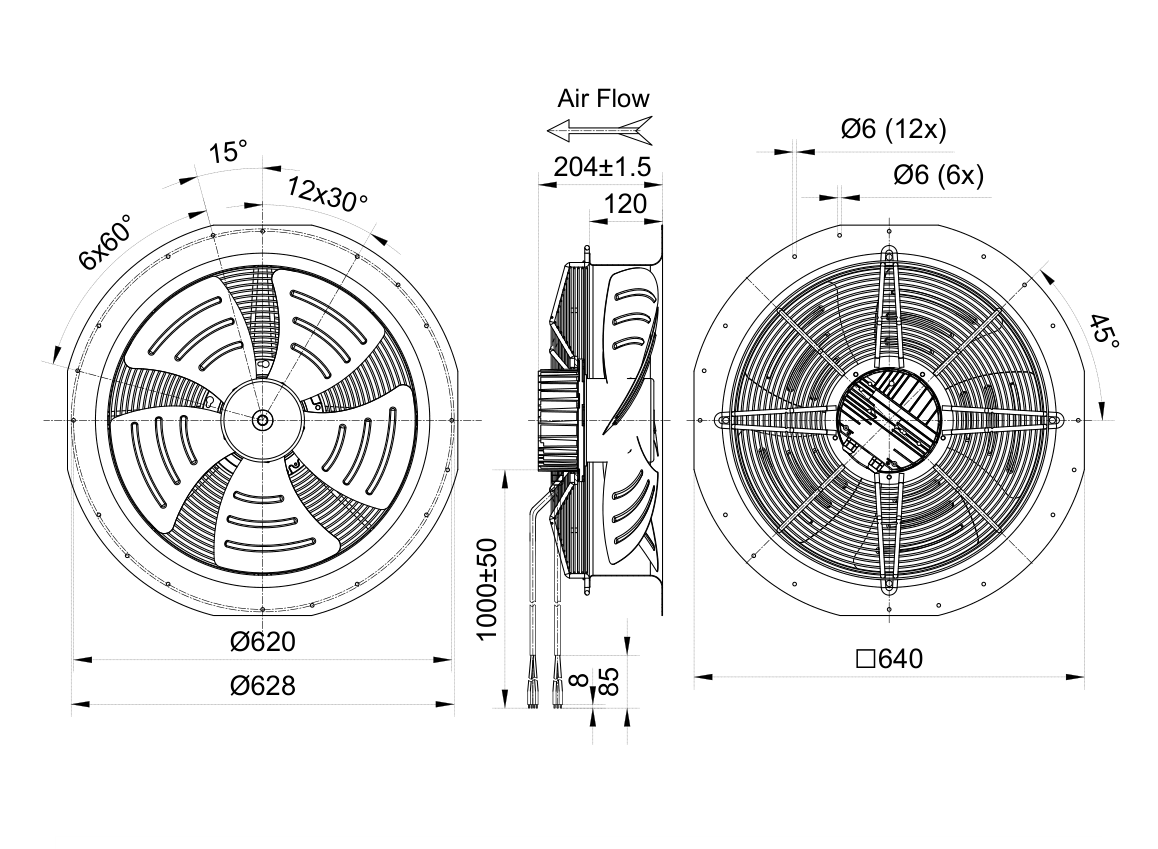

Ⅰ. Standard cable length Refer to the figure below. The length of cable can be customized
Ⅱ. Conventional mode is 0-10V/PWM control, can optionally replace the communication protocol, detailed communication protocol, please contact technical personnel
Test condition：
Ⅰ.The test data is obtained under the specified environment conditions and installation mode
Ⅱ.Input Voltage---Operating voltage
Ⅲ.Temperature---Room temperature 25℃
Ⅴ.Humidity---65%RH
Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off
Ⅱ.Do not plug or unplug the fan lead plug when the fan is running
Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury
Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out
Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds
Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product
Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer
Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading
1. High Efficiency: The FW3G500-2AGC-30L delivers 10350 m3/h at 440 Pa while drawing only 900W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.
2. Industrial-Grade Impeller: The 500mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.
3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.
5. Easy Installation and Maintenance: Compact 500mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
