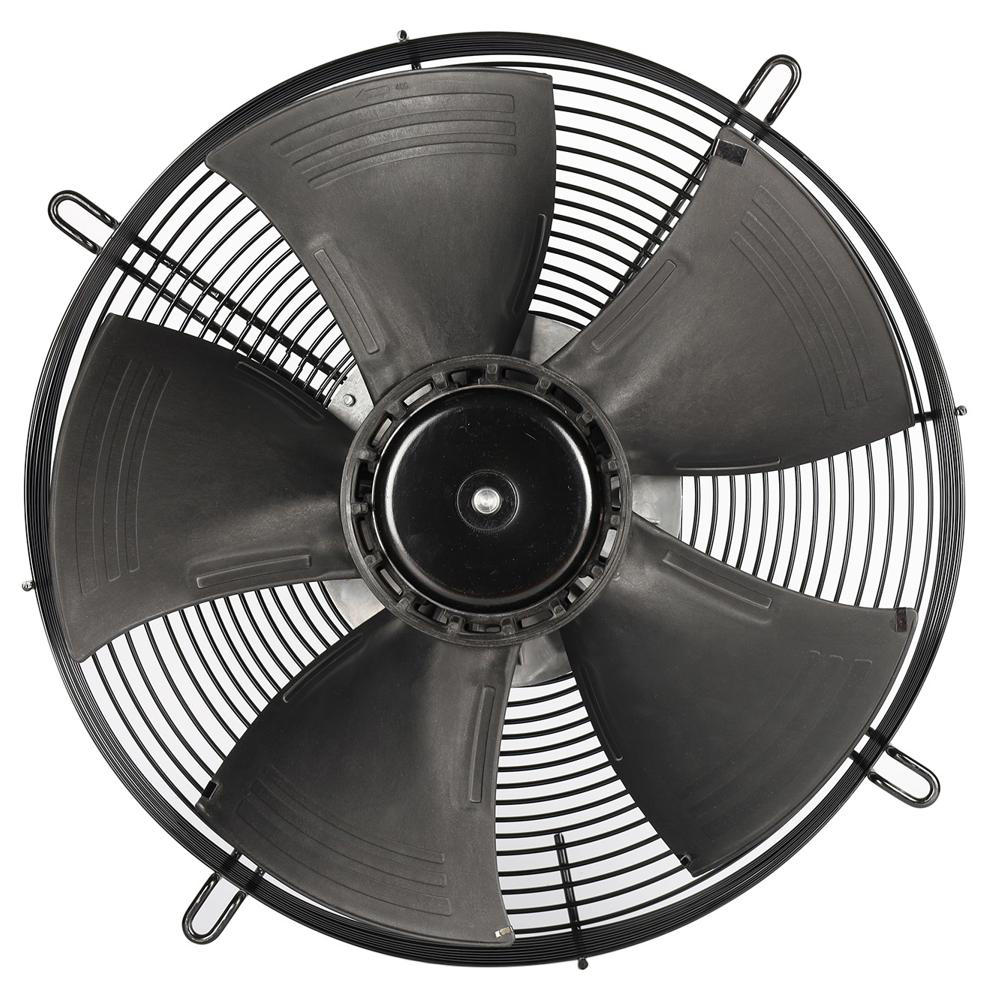

FW3G350-2APL-60B Axial Fan, 230VAC, 350mm, 5040 m3/h

This axial fan delivers a massive 2966 CFM (5040 m3/h) of airflow, making it a powerhouse solution for replacing multiple smaller fans in high-demand ventilation systems. The FW3G350-2APL-60B operates on a 230VAC supply (184-270V range) and features a high-efficiency BLDC EC motor that consumes only 750W at full speed, ensuring significant energy savings compared to traditional AC fans. With a maximum static pressure of 1.82 in.wg (455 Pa), it handles long duct runs and moderately restrictive filters with ease, maintaining performance where standard fans fall short. The 350mm impeller, crafted from glass-fiber reinforced polypropylene, offers a lightweight yet durable design that resists chemical corrosion and wear, ideal for industrial environments. Its die-cast aluminum housing ensures robust structural integrity and effective heat dissipation, while the 102mm rotor diameter contributes to smooth, stable operation at 2650 RPM. The fan includes an integrated EC controller for seamless speed adjustment, and its IP55-rated protection (implied by the rugged construction) makes it suitable for dusty or humid conditions. This model is perfect for HVAC systems, cleanrooms, agricultural ventilation, and heavy-duty industrial cooling, backed by CE and RoHS certifications. Trust FANOVA's OEM/ODM expertise to deliver reliable, high-performance axial fans tailored to your specific requirements.

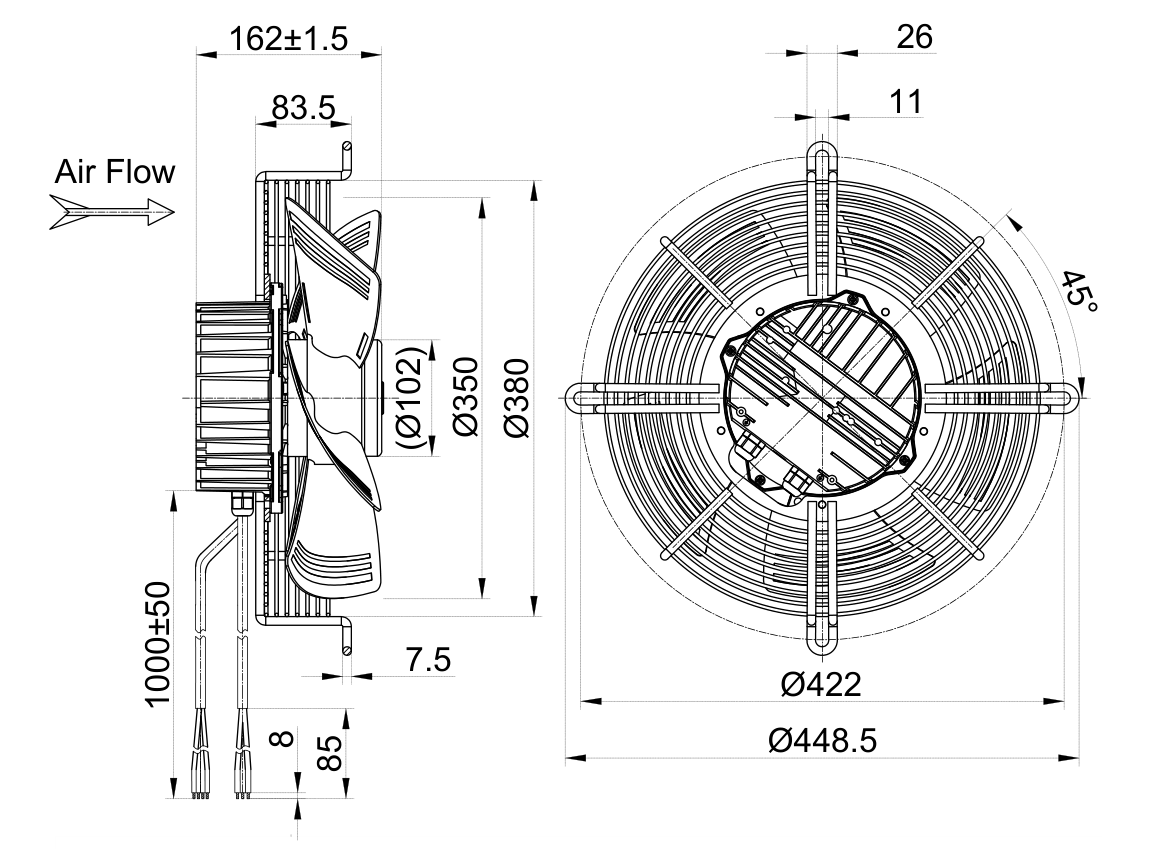

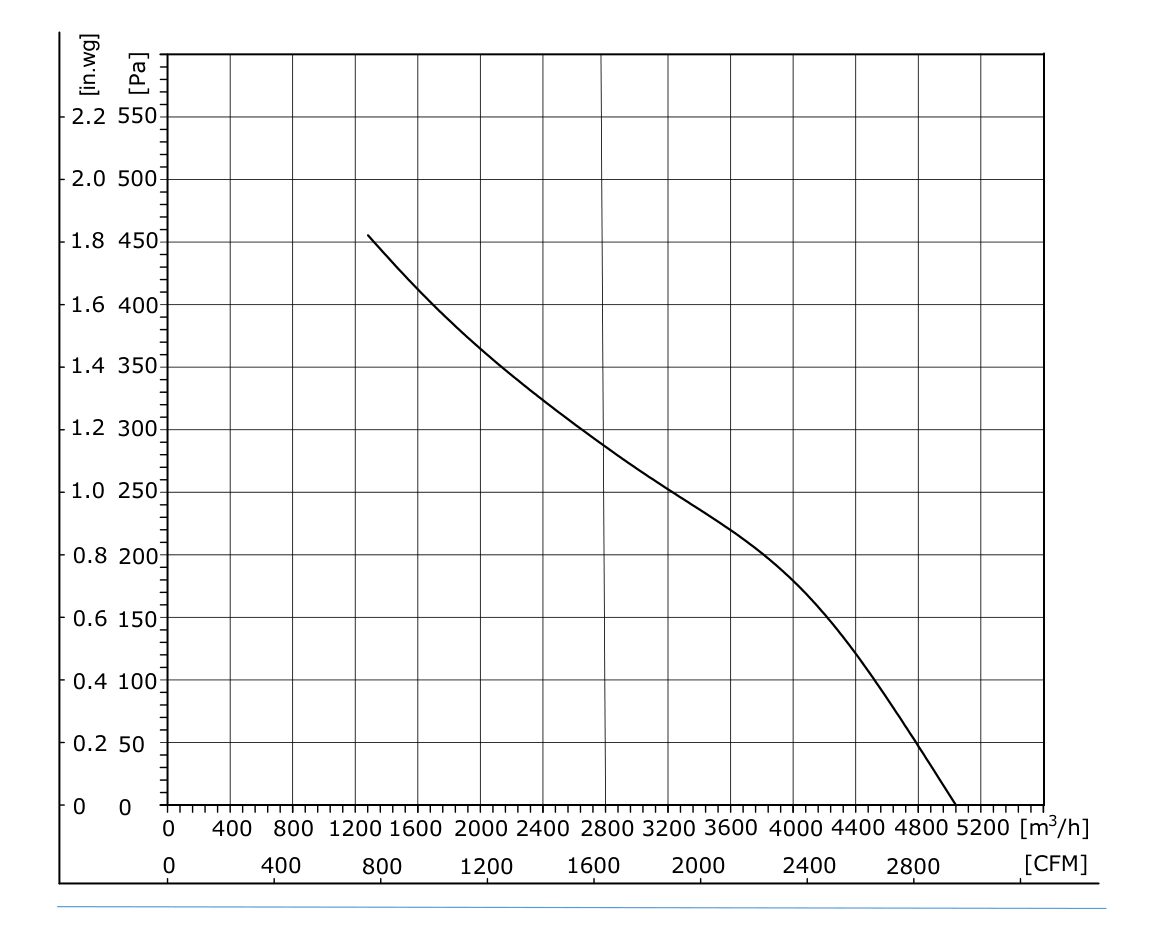

The FW3G350-2APL-60B is a 230VAC axial fan engineered for high-volume air movement in demanding industrial and commercial applications. Its impeller, with a 350mm diameter, is fabricated from polypropylene reinforced with glass fiber, offering an excellent strength-to-weight ratio, resistance to chemicals, and reduced rotational inertia for quicker start-ups and less stress on bearings. The fan is driven by a BLDC EC motor (model BLDCEC102) with a 102mm rotor diameter, which utilizes advanced electronic commutation to achieve efficiencies exceeding 85%, substantially lowering operational costs when compared to shaded-pole or permanent-split-capacitor motors. The motor operates across a wide voltage window of 184-270VAC, providing stability in fluctuating grid conditions, and draws a nominal current of 3.3A at 2650 RPM, producing up to 750W of shaft power. Speed control is implemented via a 0-10V DC analog interface, allowing precise modulation of airflow from 0 to 2966 CFM (5040 m3/h) and static pressure up to 455 Pa, making the fan adaptable to variable demand scenarios. The motor integrates overcurrent, overvoltage, and thermal protection circuits, while the insulation system is rated Class B, ensuring safe operation at elevated ambient temperatures. The fan employs dual ball bearings, rated for a lifespan of 60,000 hours at 40°C, which provide excellent radial and axial load capacity, reduced vibration, and reliable operation in harsh environments. The housing is constructed from die-cast aluminum, which not only dissipates heat effectively but also protects the motor from physical damage, and the fan is designed to meet IP55 ingress protection, guarding against dust and water jets. Electrical connectivity is achieved through an 18AWG cable of 162mm length, featuring tinned copper conductors for corrosion resistance and secure termination. The fan has been rigorously tested and certified to CE and RoHS standards, and it undergoes 100% run-in testing before shipment to ensure zero defects. This robust axial fan is ideal for applications such as HVAC air handling units, industrial process cooling, agricultural barn ventilation, and electrical cabinet cooling, where high airflow, energy efficiency, and durability are paramount. With FANOVA's OEM/ODM capabilities, the FW3G350-2APL-60B can be customized in terms of connectors, painted finishes, and sensor integration to meet specific system requirements.

AC Axial Fan
Type	FW3G350-2APL-60B
Model	BLDCEC102

Ⅰ.When taking out the fan, do not directly lift the fan lead wire. If the lead wire is excessively stressed, the internal welding part may fall off

Ⅱ.Do not plug or unplug the fan lead plug when the fan is running

Ⅲ.If the fan does not work after starting, do not touch the impeller, rotor, or other parts, professional technical personnel are required to inspect the fan to prevent sudden start of the fan from causing hand or other personal injury

Ⅳ.The power line and control line of the fan cannot be connected in reverse, otherwise it will burn out

Ⅴ.Because of the soft start characteristics of the fan, to prevent personal injury, do not touch the impeller or other parts of the fan during powered on or running at low speeds

Ⅵ.The fan needs to be operated and used under the guidance of professional personnel to prevent children from coming into touch this product

Ⅶ.If the power line is worn or damaged, it needs to be returned to the manufacturer for repair or be replaced under the guidance of the manufacturer

Ⅷ.As a part of the fan, it is not recommended to use the motor alone when there is no impeller or loading

1. High Efficiency: The FW3G350-2APL-60B delivers 5040 m3/h at 455 Pa while drawing only 750W, achieving 30-40% energy savings over equivalent AC fans through FANOVA's BLDC motor technology.

2. Industrial-Grade Impeller: The 350mm galvanized steel sheet impeller resists corrosion, wear and high temperatures, making the fan suitable for harsh industrial environments and corrosive gas streams.

3. Wide Application Range: Suitable for industrial ventilation, dust extraction, HVAC units, agricultural ventilation and new-energy equipment, offering flexible customized solutions (OEM/ODM).

4. Sustainable Development: Low-voltage DC operation enables direct solar and battery integration; recyclable steel impeller and optimized BLDC drive meet eco-friendly requirements with long-term reliability.

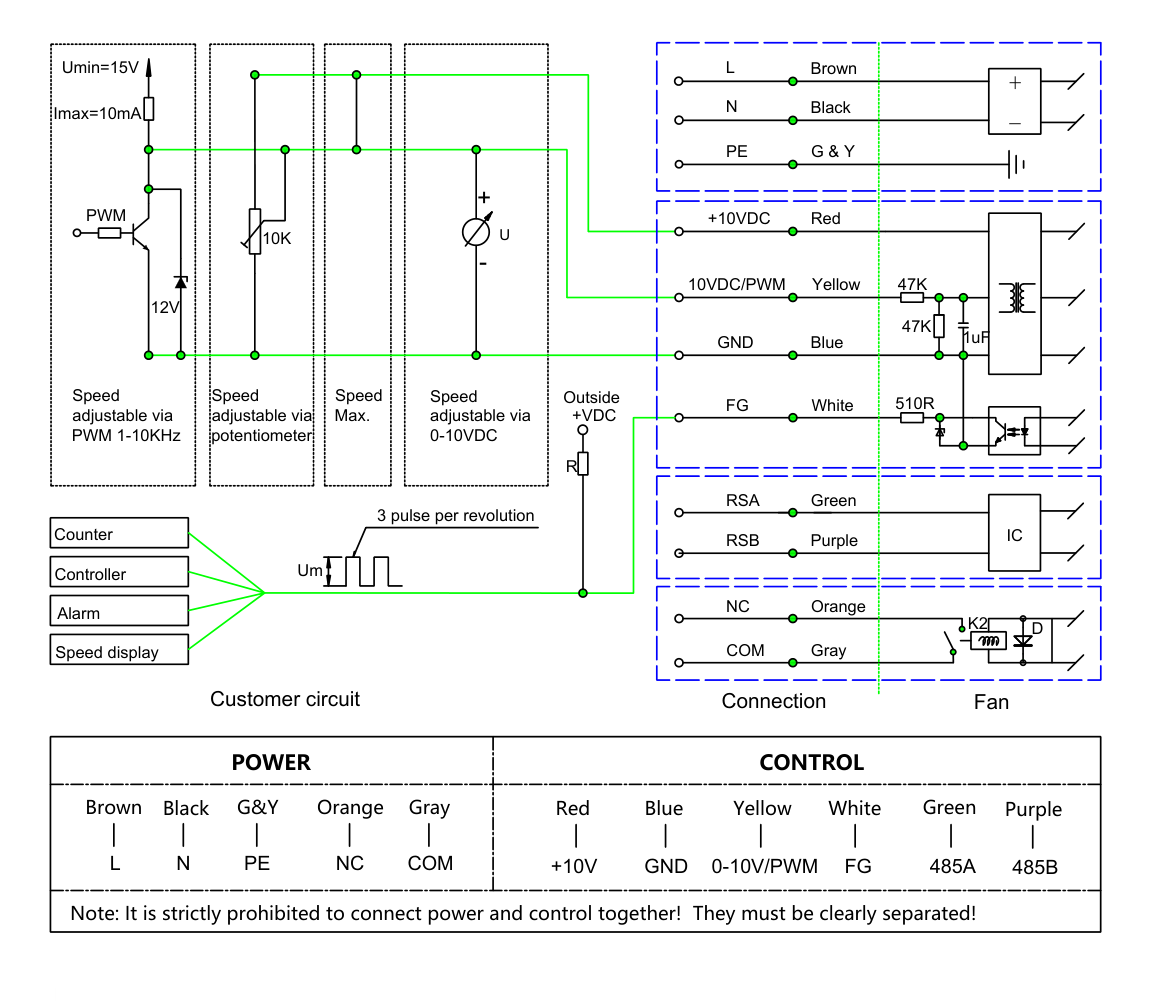

5. Easy Installation and Maintenance: Compact 350mm footprint, 0-10VDC/PWM speed control, FG tach output and standard cable make the fan simple to wire, control and service.
